BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INSTALLATION
2019 Automatic Tuning Mobile HF Antenna
(Barrett P/N BC201900)
The Barrett 2019 automatic tuning mobile HF antenna plugs directly into the
rear of a PRC-4090 System Docking Station using the cables supplied. Optional
PRC-4090 Control Handset Extender Cable - 6.0 metres
(4090-01-13)
Important: PRC-4090 transceivers must have the 2019 antenna option set during
programming.

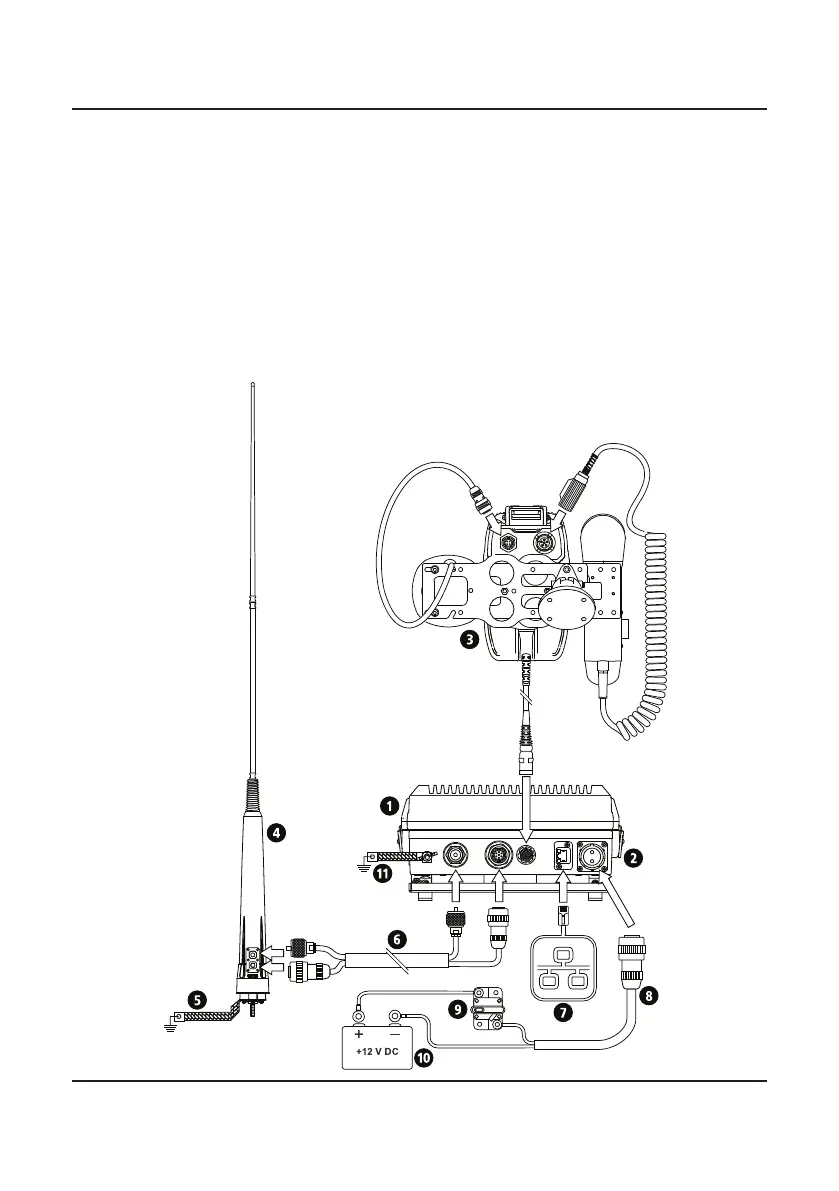

Connection Details for a PRC-4090 Transceiver with Mobile Pack
and 2019 Automatic Tuning Mobile HF Antenna
To Next Page
