154
BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INSTALLATION

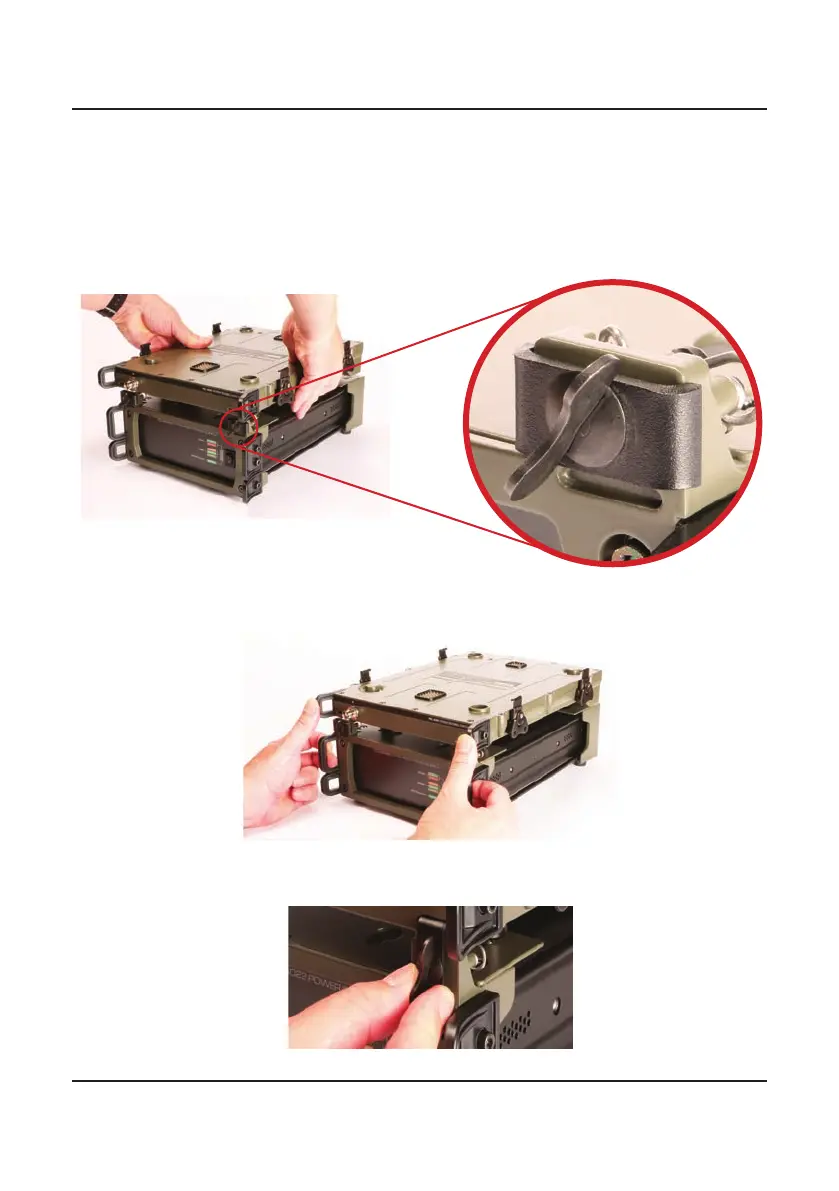

Assembly
1. Before starting, ensure that the lock clamps are released and in a horizon-
tal position.
2. Place the SDS on top of the PRC-4022, ensuring that the four capstans are
correctly aligned and drop into the keyway slots.
3. Push the SDS towards the rear of the power supply as shown below so that
the capstans and SDS click into place.
4. To secure the SDS, rst rotate the lock clamps back into a vertical position,
then turn the fasteners a quarter turn. The locks should click into place.
