BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INSTALLATION

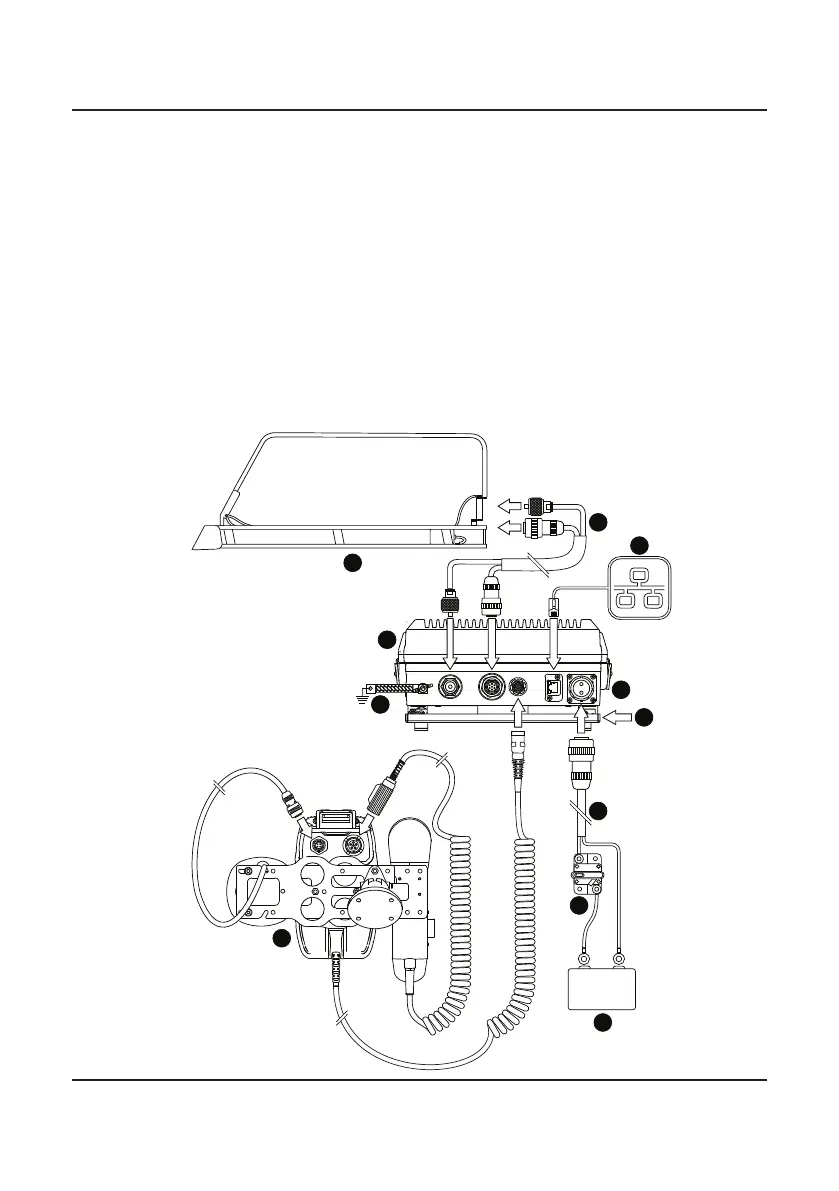

2018 Mobile Magnetic Loop Antenna
The roof rack has been designed by Barrett Communications Pty. Ltd. as an
integral part of the antenna system. The ground (earth) plate is a heavy-duty
aluminium mesh oor, welded to an enclosing frame which maximises current
in the radiating loop. The 2018 Barrett Mobile Magnetic Loop Antenna shields
and isolates vehicle ignition noise and interference from adjacent power lines
providing greater communication clarity.
The 2018 Mobile Magnetic Loop HF Antenna is designed for universal mount-
ing. The roof rack comes in a range of mounting bracket options. Solutions are
available that will allow clamping to the roofs of 4WDs, sedans, buses, trucks
and prime movers. It is designed to minimise head wind noise with an angled
deector mounted on the front of the unit.
1
4
3
5
7
7
2
7
+
_
+12 V DC
11
9
10
6
8
