BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INSTALLATION

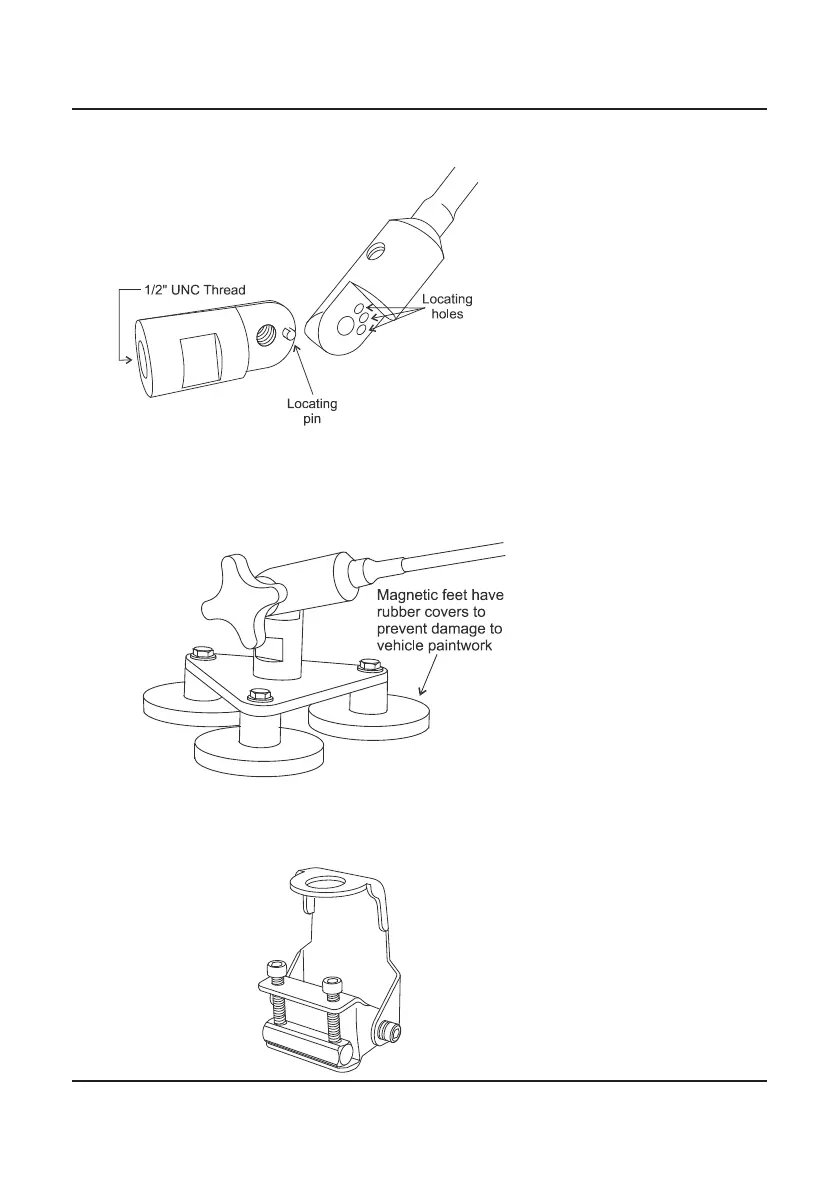

Figure 2 Adjustable roof mount tting showing locating pin and locating holes.
Figure 3 NVIS Kit Magnetic Mounting Base (optional) P/N BCA201911.
Base shown
here with
roof mount
tting
attached.
Figure 4 NVIS Kit Gutter Mount Bracket (optional)
P/N BCA201912.
