BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INTRODUCTION
The Barrett PRC-4090 HF Transceiver Overview
Manpack Conguration
2
1
43
5
8
9
11
OFF
EMERG.
ON
Z
7
6
10
1

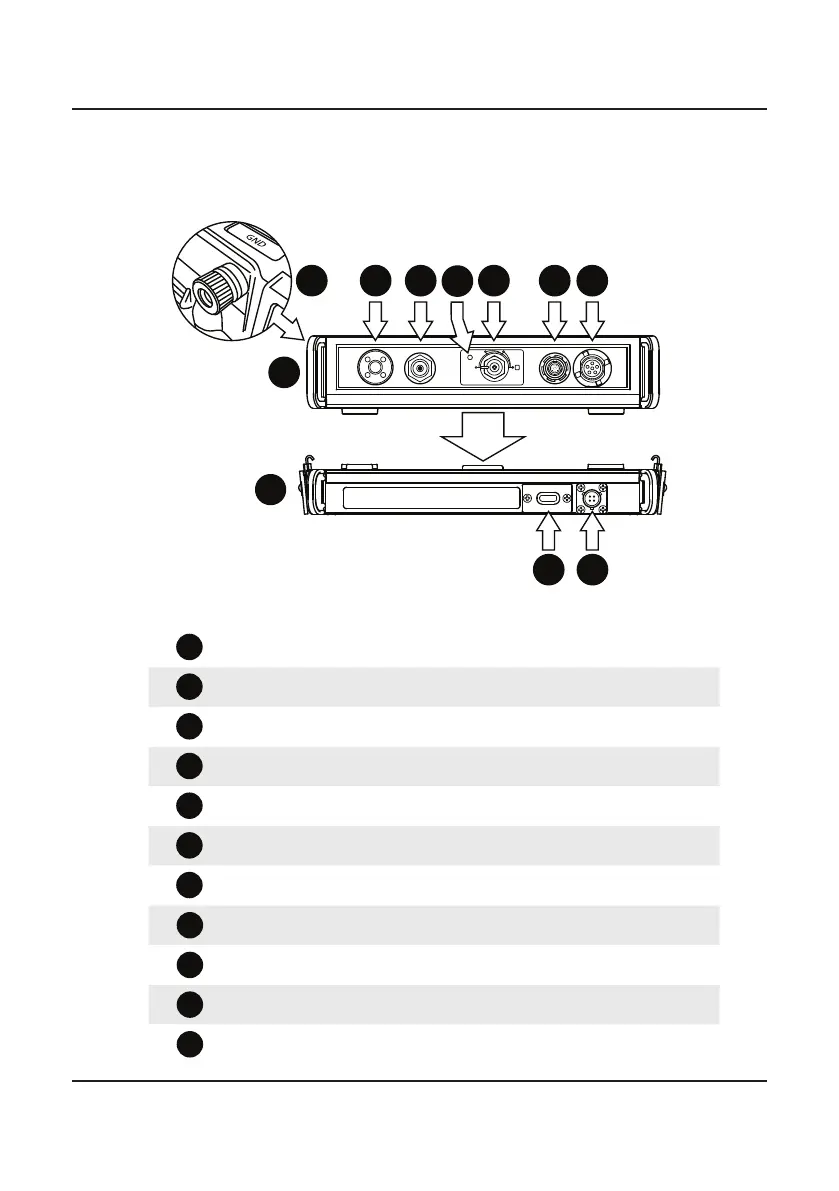

PRC-4090 HF SDR Transceiver (P/N 4090-00-01)
2
PRC-4090 16Ah battery pack (P/N 4090-03-05)
3
Earth stud
4
Whip antenna connection
5
50 Ohm antenna connection
6
LED status indicator
7
On/Off, Emergency and Zeroise switch
8
PRC-4090 Control Handset connector
9
H250 Handset connector
10
Battery indicator
11
Battery charger connector
