BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INSTALLATION

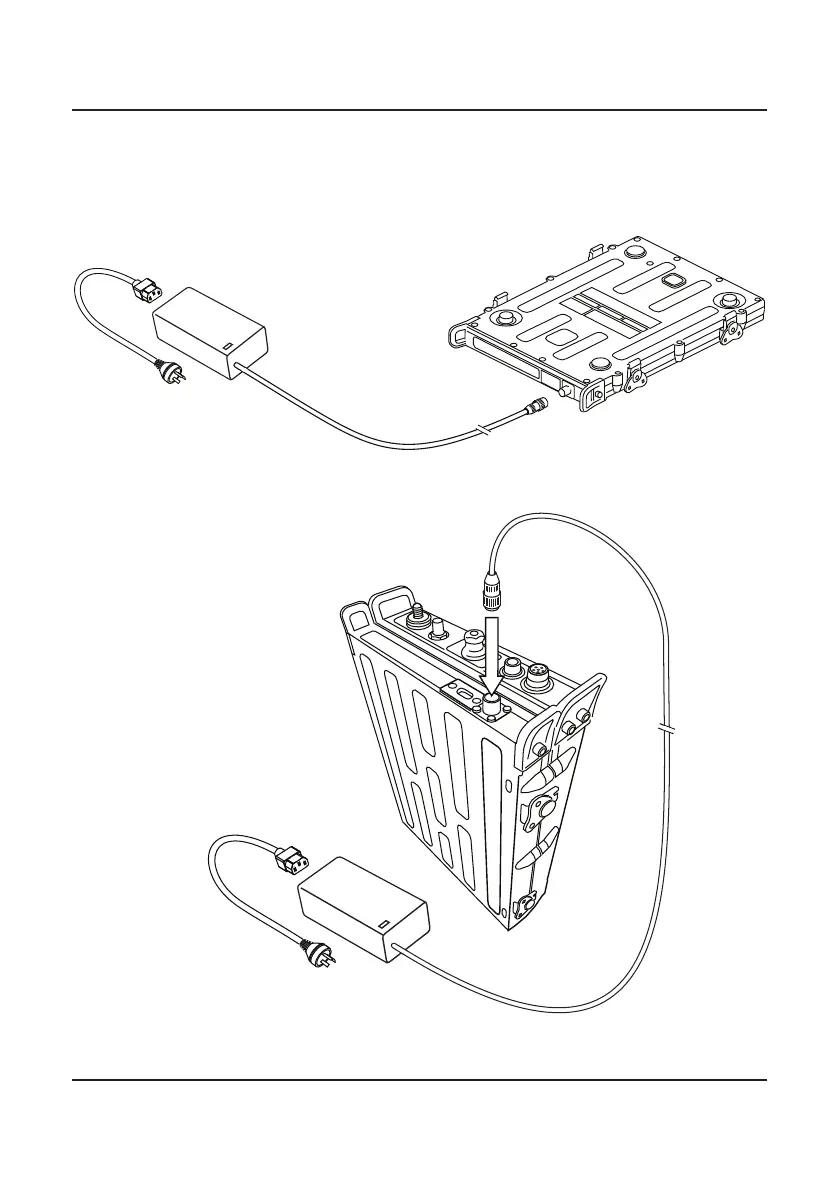

AC/DC Input Universal Power Adaptor Unit P/N 2090-03-01

For operation from a mains voltage between 100-254 V AC sources:
