BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - INSTALLATION

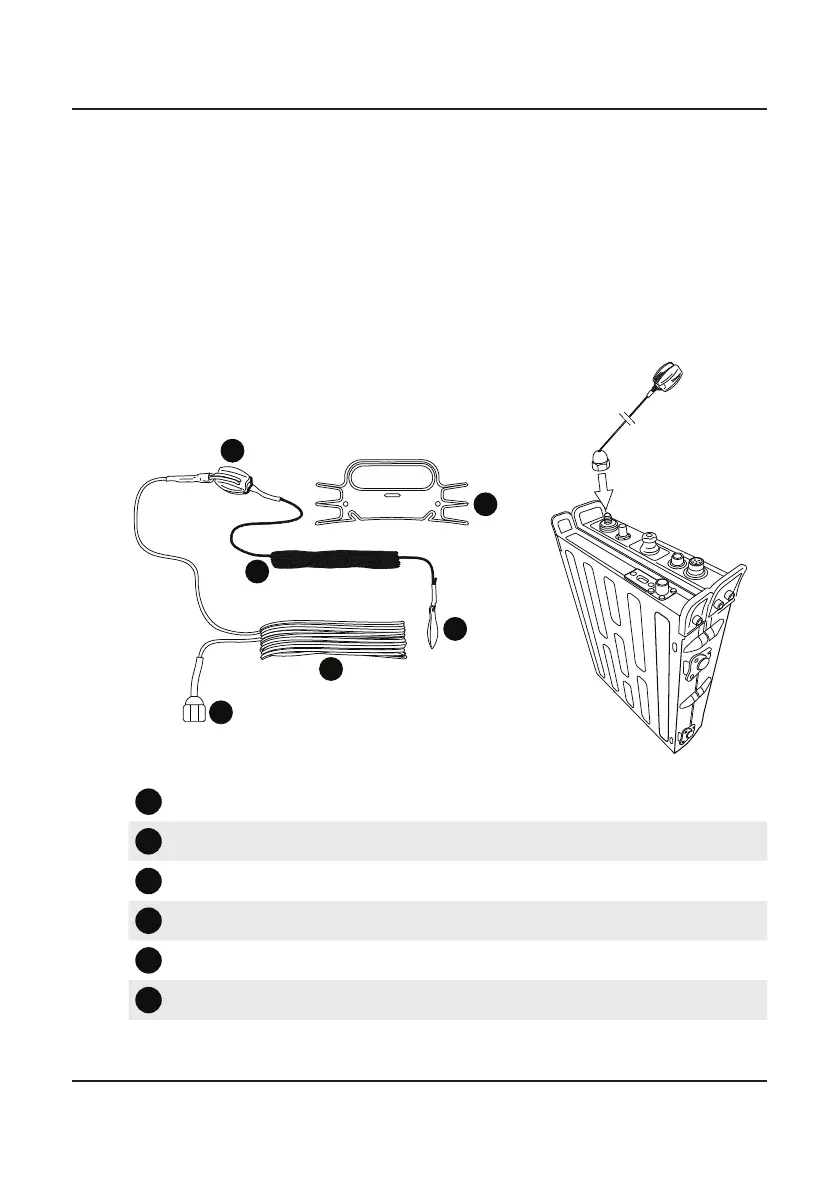

Throw Over Long-wire Antenna (P/N 4090-02-06)
The long-wire antenna should be unfurled and the end away from the man-
pack Transceiver should be attached to any structure available and as high as
possible.
When using an un-tuned antenna such as the whip or the long-wire the selec-
tion “Antenna Type” (see page 24) in the standard menu should be used to
enable the automatic tuner i.e. select “Whip/Long-wire” operation. When this is
selected the in-built tuner automatically tunes the whip or long-wire whenever
the unit transmits after a channel change.
4
3
5
6
1
2
1
Balun
2
Spool
3
Cord
4
Weight
5
Antenna
6
Coaxial connector
