BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - APPENDICES

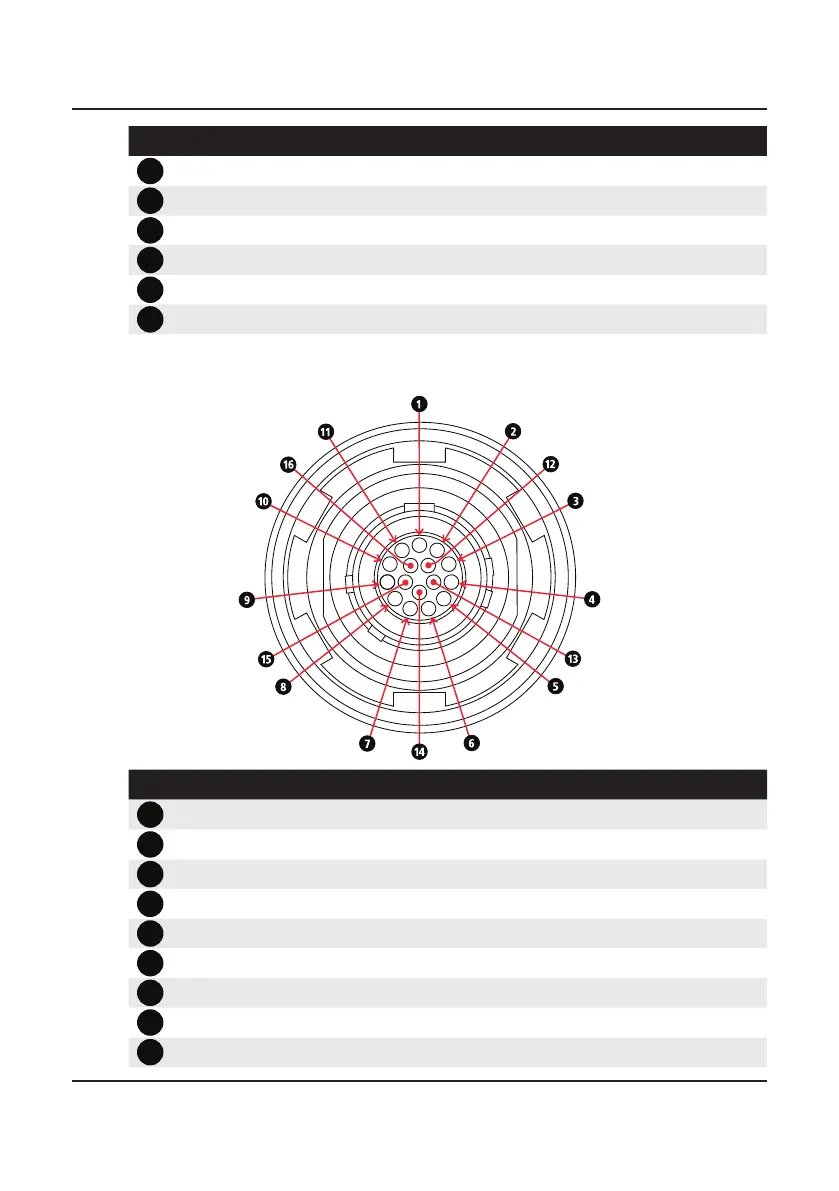

2. Control Handset Connector
PIN Signal
1
Ground
2
Handset Voltage
3
CAN Bus positive
4
CAN Bus Negative
5
Handset Audio Positive
6
Handset Audio Negative
7
Ethernet TX Data positive
8
Ethernet TX Data negative
9
Ethernet RX Data positive
PIN Signal
16
Mute State
17
USB Data Positive
18
USB Data Negative
19
+5 USB
20
Auxilliary PTT
21
Auxilliary Digital In
