BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - APPENDICES
PIN Signal
1
Input Voltage
2
Input Voltage
3
Input Voltage
4
RS232 Transmit
5
Input Voltage
6
RS232 Receive
7
Ground
8
Ground
9
Ground
10
Ground

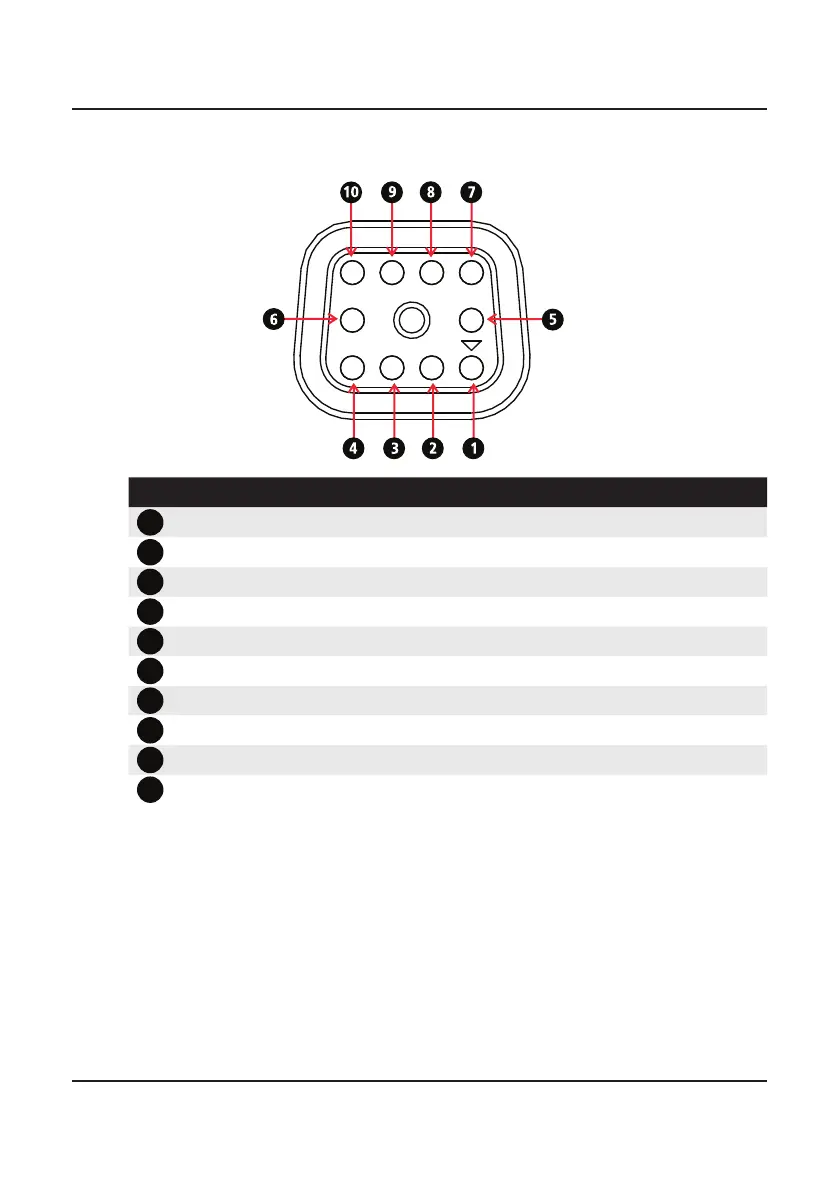

4. Power Connector
