205
BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER -APPENDICES

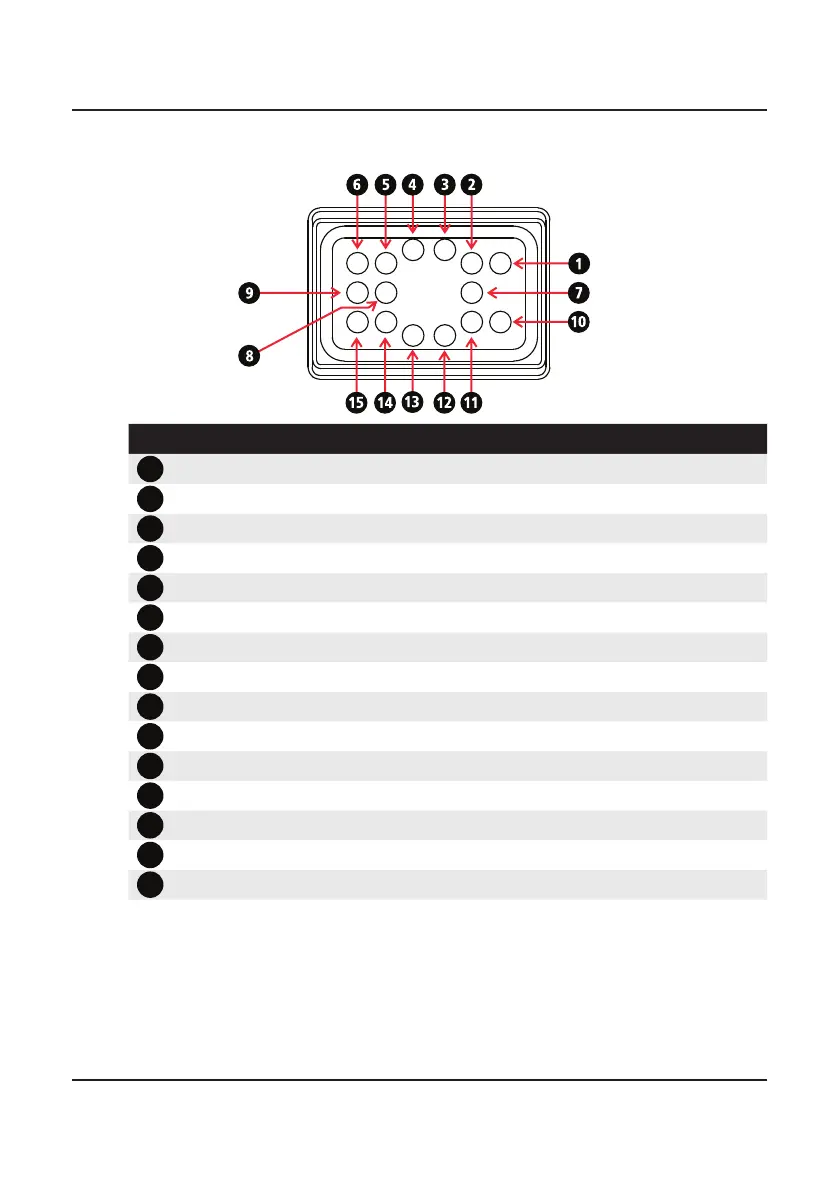

1. Cradle Auxilliary Connector
PIN Signal
1
Reserved
2
Reserved
3
USB Data Positive
4
USB Data Negative
5
+5 USB
6
Reserved
7
Ground
8
Ground
9
Handset Dock detection
10
Speaker Out Negative
11
Speaker Out Positive
12
Dock Speaker Detection
13
H250 Microphone Input
14
H250 PTT
15
H250 Speaker output
