Designated Antenna socket. Selects the
antenna to be used for this channel.
An additional antenna can be added
using the Dual Port Antenna Switch
Unit (P/N BCA40506). Viewable in
mobile and base station formats only.
Displays ALE type. Covered in the ALE
manual. 2G, 3G, 2G/3G, No.
Number designated for the channel.
Usually the next available number.
Name designated for this channel.
More detail below.
Desired receive frequency in kHz.
Can be entered using the on-screen
keypad.
Desired transmit frequency in kHz. Can
be entered using the on screen keypad.
Mode of Modulation. Can be USB,
LSB, CF, CW or AM. See Terms and
Abbreviations on pg 4-5. Network
Administrator designated.
Transmit power in Watts. Can be
either 10, 30, 125 or 150W
Designates the Selcall IDs to be used on
this channel, whether INT, OEM, CCIR,
RFDS or an ID set to a network.
67
BARRETT PRC-4090 TACTICAL HF SDR TRANSCEIVER - PROGRAMMING

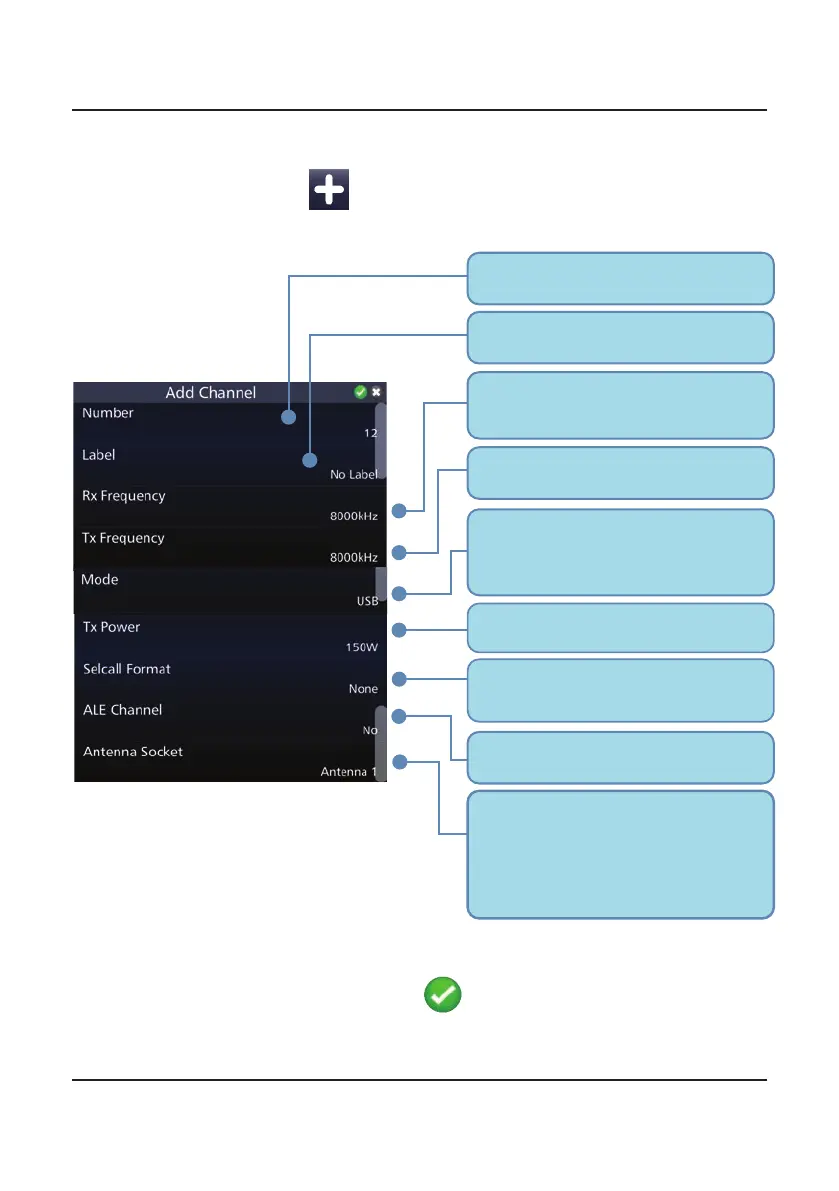

To add a channel, tap to display the Add Channel screen.
Adding a new channel
After conguring the above attributes, tap to add the channel. A conrmation
message displays. Tap Yes.
