3.3 Printer See Figure 3-2.
The printer, located on load side control panel, records all cycle data
and any abnormal condition during operation.
Printer allows operator to print cycle data and washer malfunction
data. Specific information is printed from Cycle mode (cycle
parameters, alarms), Service mode (washer configuration values)
and Supervisor mode (supervisor’s list, supervisor setup).

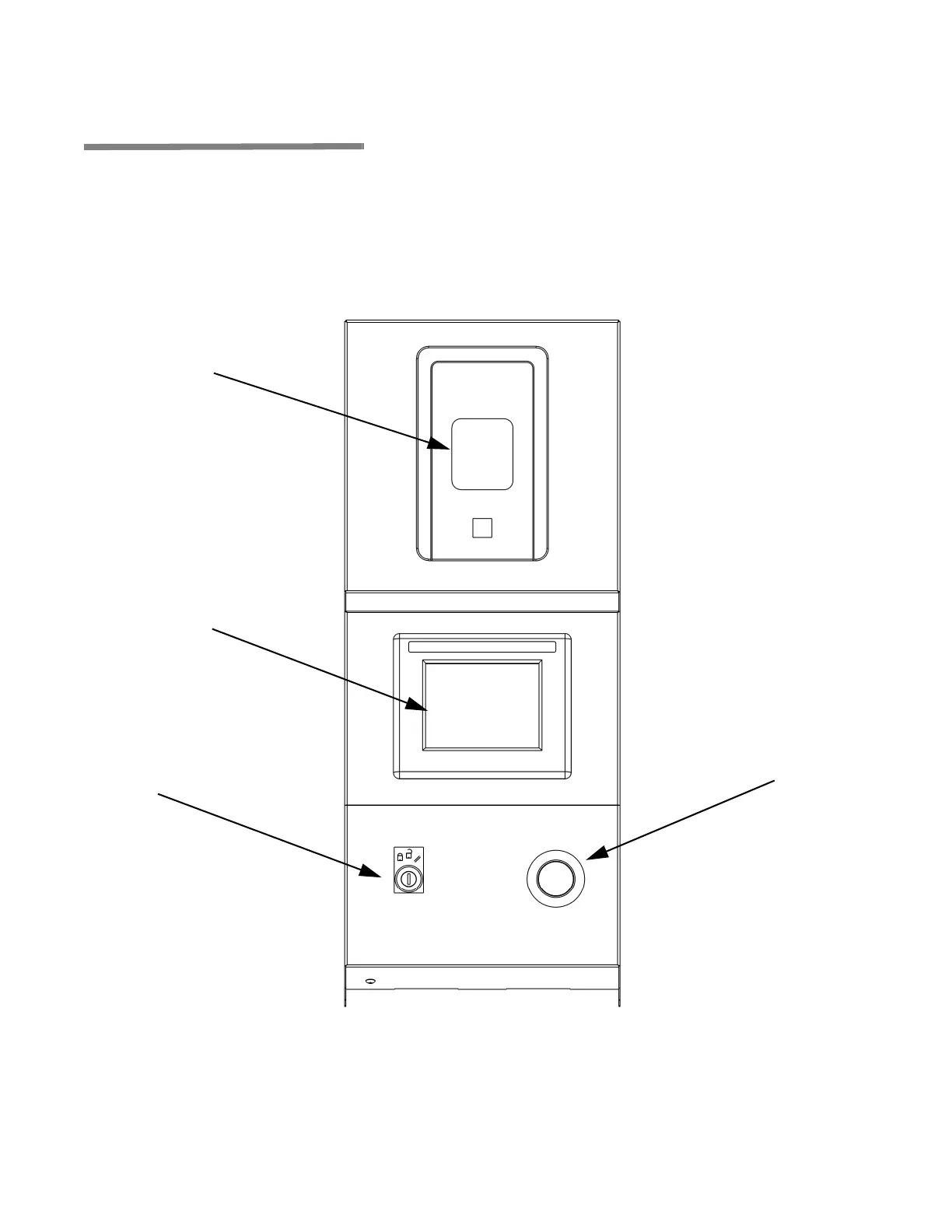

Figure 3-2. Operator Terminal and Printer
Printer
EMERGENCY STOP
Button
Display
LOCK/
UNLOCK/INIT
Switch
