Acquisition Control AW00118303000
126 Basler racer GigE
The acquisition trigger wait signal will only be available when hardware
acquisition start triggering is enabled.
Time
= Camera is in a "waiting for
acquisition start trigger" status
Acq. Trigger
Wait Signal
Line Acquisition
Exp. Readout
Line Acquisition
Exp. Readout
Line Acquisition
Exp. Readout
Line Acquisition
Exp. Readout
Line Acquisition
Exp. Readout
Line Acquisition
Exp. Readout
ExASTrig
Signal

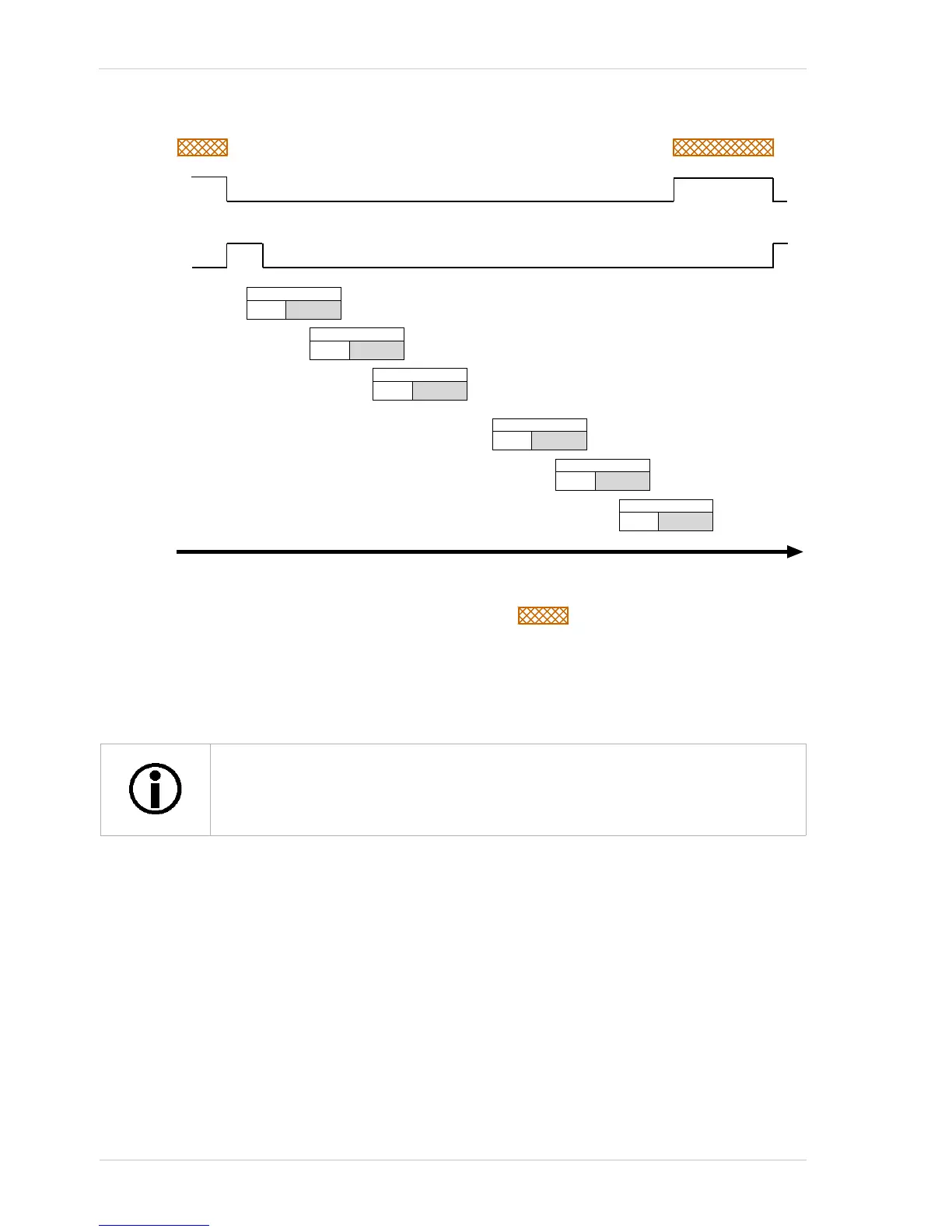

Fig. 45: Acquisition Trigger Wait Signal
{
{
Frame M
Frame M+1
