Basler GigE VISION CAMERAS User Manual

Acquisition Control AW00118303000
128 Basler racer GigE
By default, the frame trigger wait signal is selected as the source signal for output line 2 on the
camera. However, the selection of the source signal for a physical output line can be changed.
The frame trigger wait signal will only be available when hardware frame start
triggering is enabled.
Line Acqn. N
Exp.
Readout
Time
Frame Trigger
Wait Signal
ExFSTrig
Signal
= Camera is in a "waiting for
frame start trigger" status

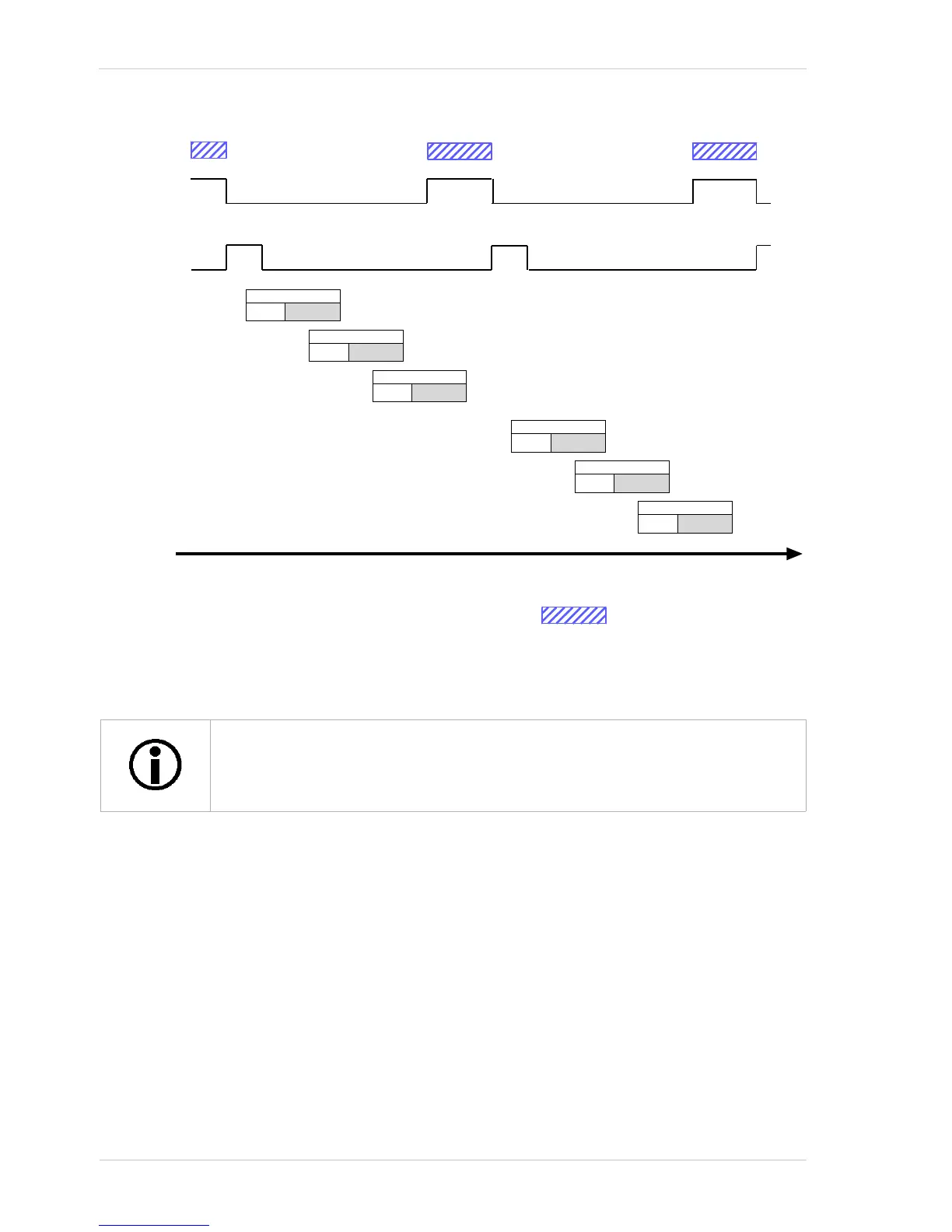

Fig. 46: Frame Trigger Wait Signal
Line Acqn. N+1
Exp .
Readout
Line Acqn. N+2
Exp .
Readout
Line Acqn. N+3
Exp .
Readout
Line Acqn. N+5
Exp .
Readout
Line Acqn. N+4
Exp .
Readout
