AW00118303000 Specifications, Requirements, and Precautions
Basler racer GigE 11

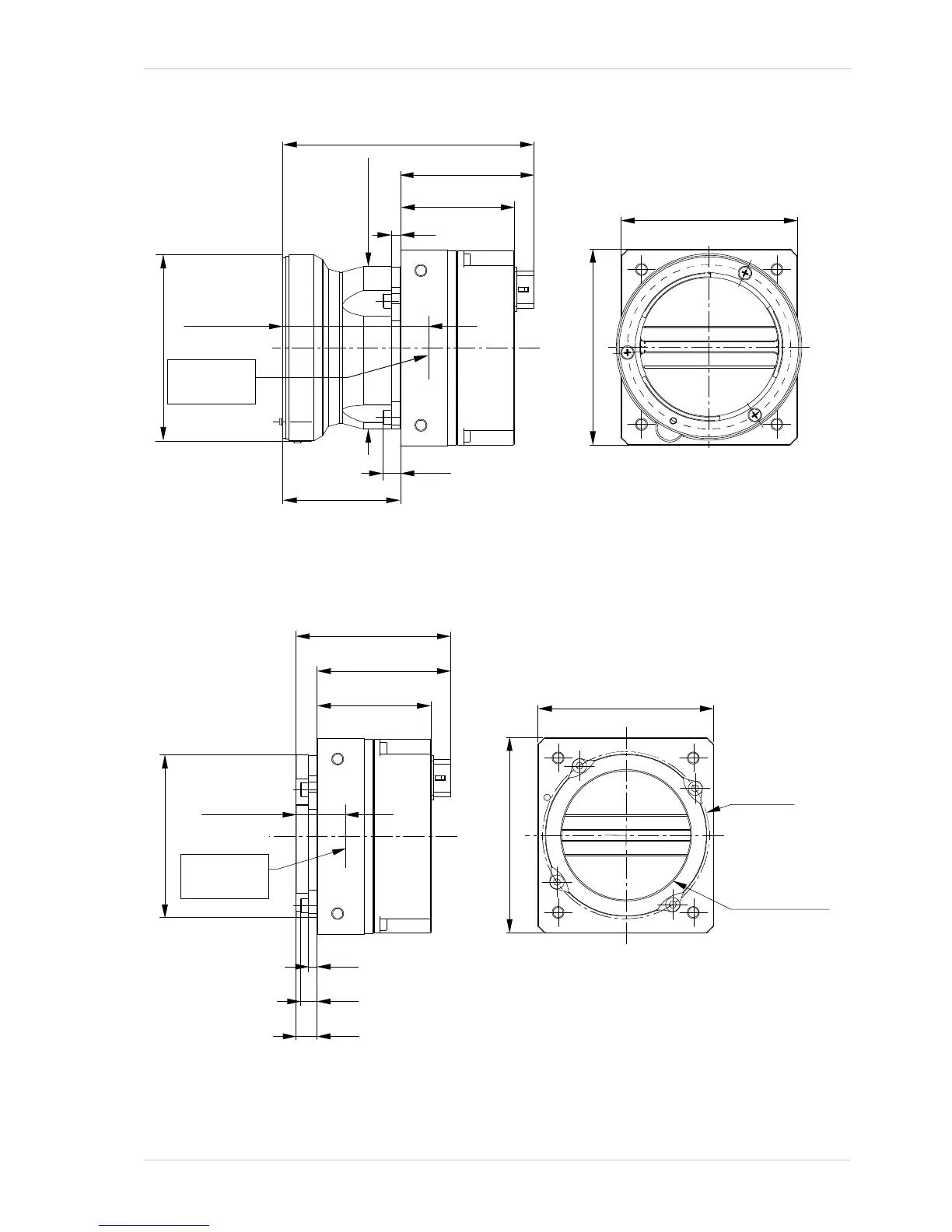

Fig. 5: F-Mount Adapter on a racer GigE Camera; Dimensions in mm
Fig. 6: M42 x 1.0 or M42 x 0.75 Mount Adapter on a racer GigE Camera; Dimensions in mm
Photosensitive
Surface of the
Sensor
5.5
Not to Scale
3
36.12
42.42
37.4
79.82
ø59
62
56
46.5
ø51.5 ± 0.05
Photosensitive
Surface of the
Sensor
36.12
Not to Scale
42.42
3
7
ø53
49.42
5.5
M42 x 1.0 or
M42 x 0.75
62
56
16
ø51.5 ± 0.05
