2.6 Mechanical access protection (optional)
It is the task of the mechanical access protection system to
prevent any unintentional access of the closing unit when the
protective guard is still open.

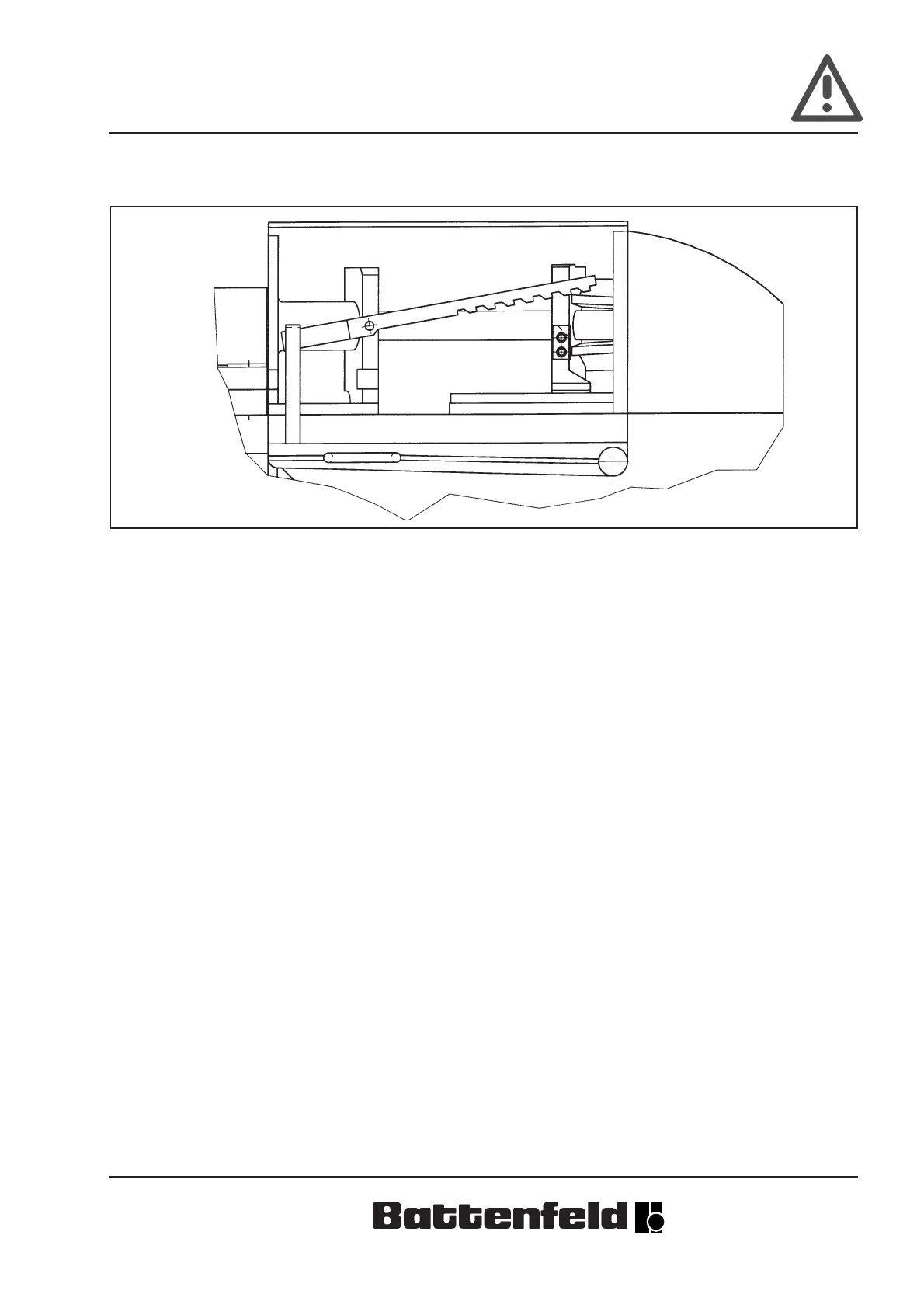

Basically, the setup consists of the toothed bumper bar,
which is rotatably connected to the nozzle platen, and the
limit stop fastened to the closing platen.
When opening the protective guard, the weight of the toothed
bumper bar causes it to fall onto the limit stop; this activates
a blocking function that prevents the closing unit from closing.
If a machine error has occurred, thereby triggering the
mechanical access protection, contact Battenfeld Customer
Services or the competent representative office.
2.7 Guarding
In order to prevent accidents, the closing unit is completely
covered by a guard. The front of this guard forms a one-part
covering cap. It may be removed for adjusting by unscrewing
four screws.
The working area between the closing and nozzle platens is
protected by a pivotable plexiglass guard providing excellent
view of the working area.
