Battenfeld PLUS 250/50 - Performance Diagrams

Technical Data
A: PL120100.030
B: PL120000.030
E: 03.93 / T. Weiß
G: 06.93 / T. Weiß
Chapter: 3
Page: 3

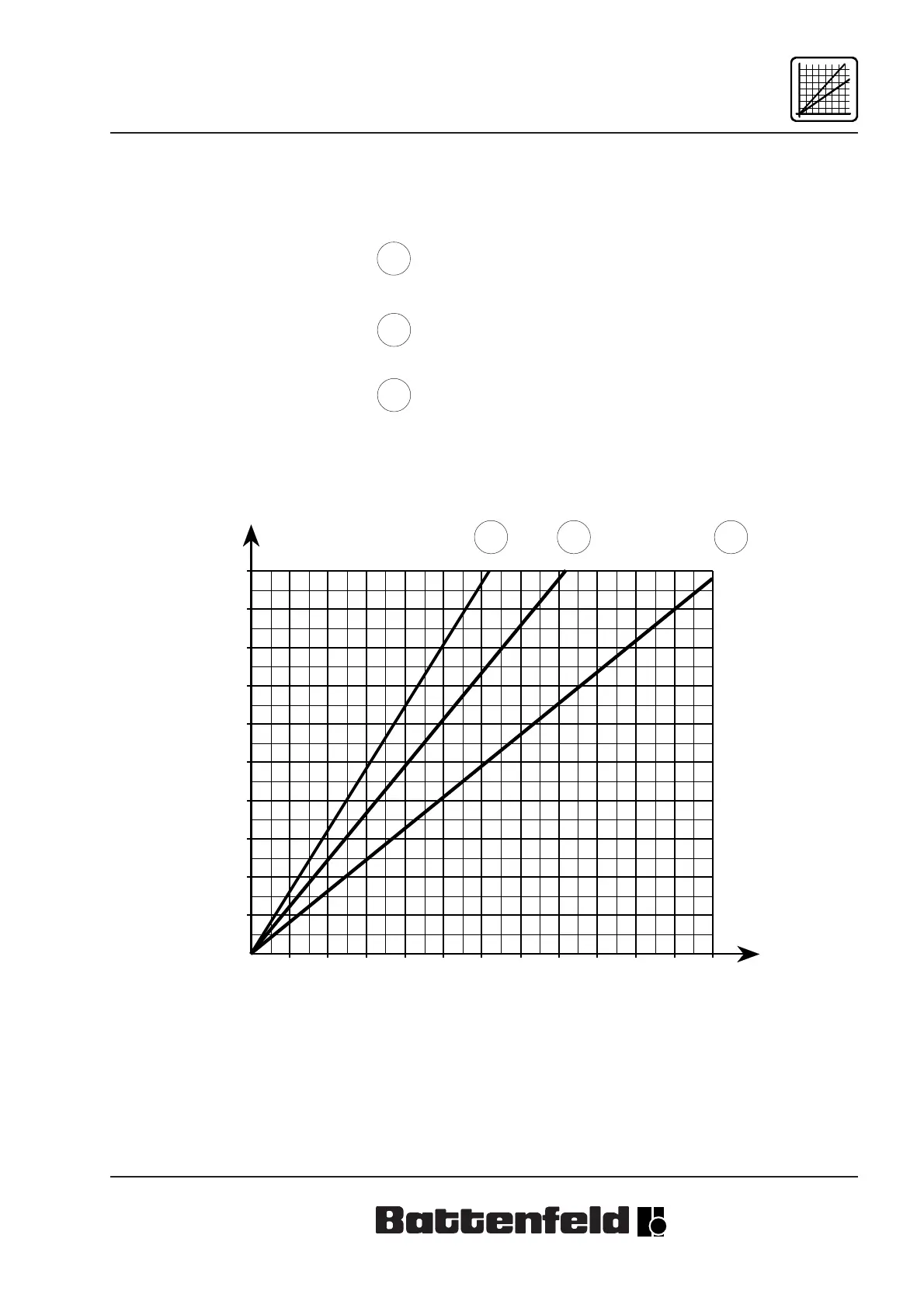

3.3 Diagram / Injection pressure
Injection component 50
Screw D = 18 mm (0,709 inch)
2431 bar (35250 psi)
Screw D = 22 mm (0,866 inch)
1627 bar (23590 psi)
Screw D = 25 mm (0,984 inch)
1260 bar (18270 psi)
1
3 2 1
100
90
80
70
60
50
40
30
20
10
400200 1200 1400 200018001600 2200 24001000800600
2900 5800 8700 11600 14500 17400 2320020300 26100 29000 31900 34800
bar
psi
Bild: PL-0015.WMF
2
3
p [%]
