Structure and Function
A: PL120100.052
B: PL120100.052
E: 03.93 / T. Weiß
G: 03.93 / T. Weiß
Chapter: 5.2
Page: 1
?
5.2 Closing unit
5.2.1 Technical description

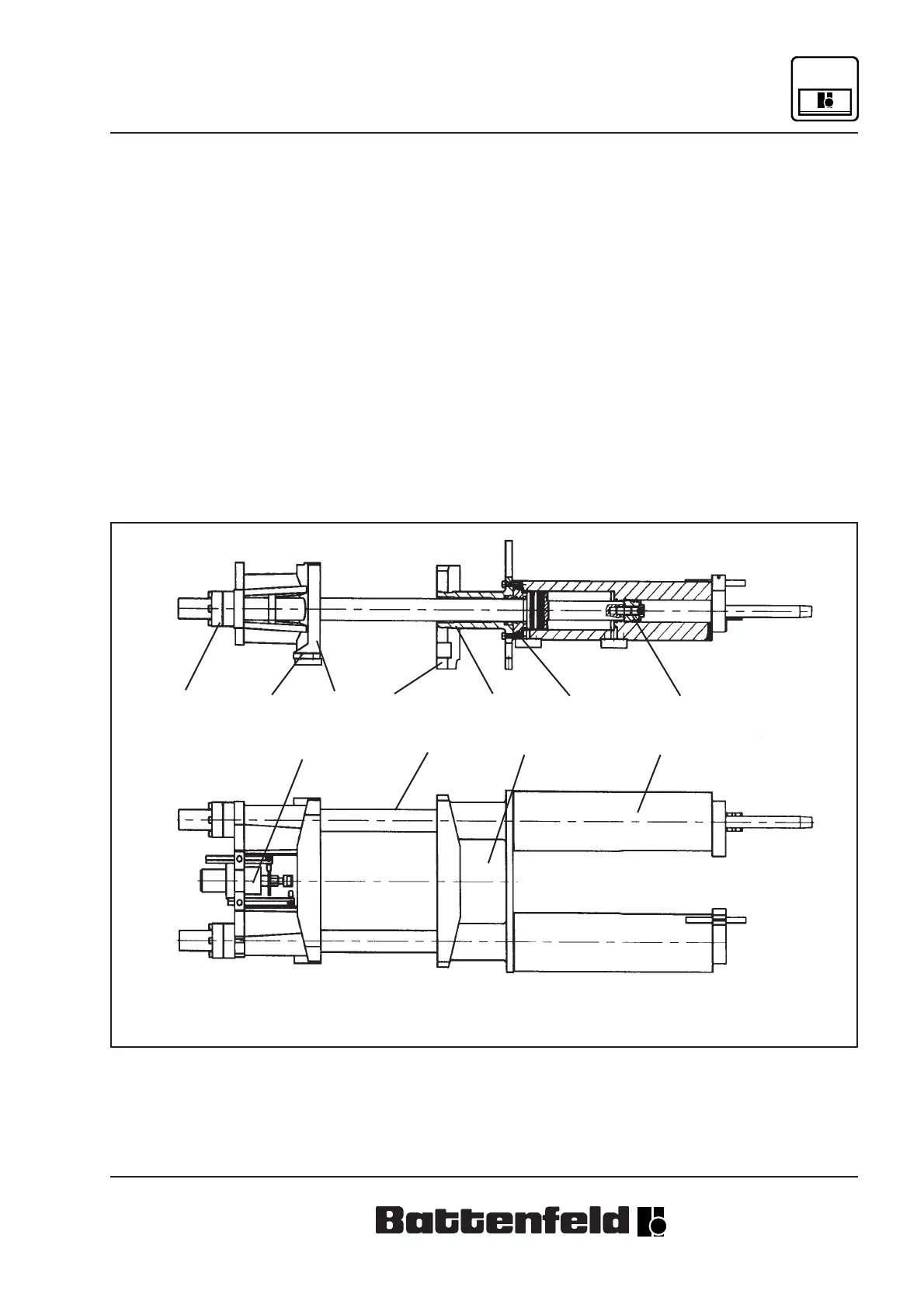

The closing unit mainly consists of a cast iron closing plate
(Item 1) with an integrated hydraulic ejector (Item 2), a cast
iron nozzle plate (Item 3) with a clearance (Item 4), which
doubles as an injection protection for the injection equipment.
Moreover, the guiding rails for the piston rods of the closing
cylinder (Item 5) are integrated into the nozzle plate.
The two closing cylinders consist of the cylinder tubes (Item
6), the piston rod (Item 7), the quick-action cylinder piston
(Item 8), the seal sleeve (Item 9) and the fastening nuts (Item
10) and the sliding plate (Item 11) for the closing plate.
35 8910 1
11
274 6
Bild: PL-0011.TIF
