Transport - Siting
A: PL120100.040
B: PL120100.040
E: 03.93 / T. Weiß
G: 06.93 / T. Weiß
Chapter: 4
Page: 5

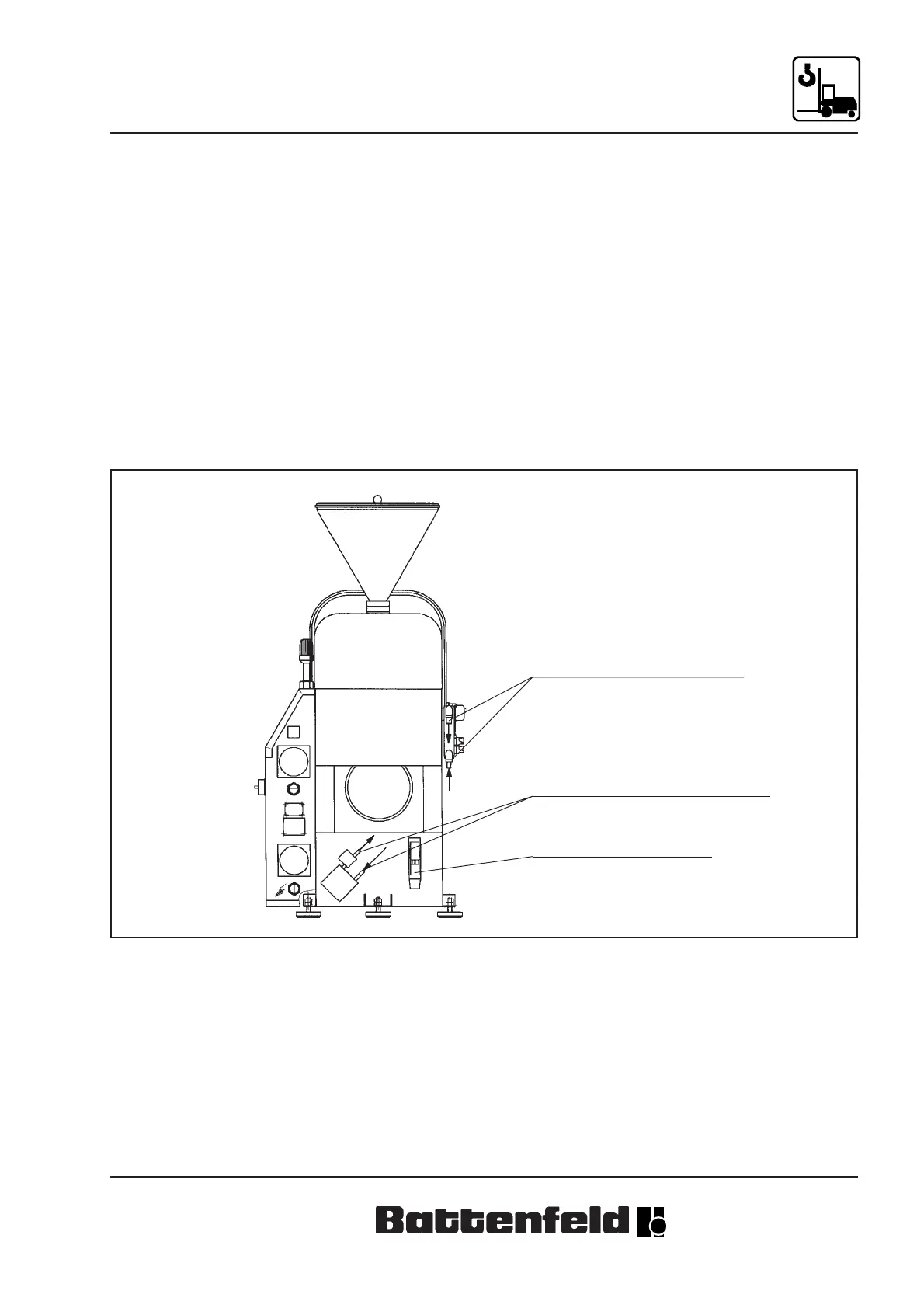

Bild: PL-0007.TIF
Cooling water connection R 1/2"
Oil cooler connection NM 10 (0.394 inch)
Oil inspection glass
4.6 Connection to cooling water distributor
The cooling water distributor is situated at the back of the
machine. The connection diametre is R 1/2".
4.7 Oil cooler fitting
The oil cooler is connected to the 2nd cooling water distribution
circuit. The nominal width of a hose is NW 10 mm (0.394
inch).
