Transport - Siting
A: PL120100.040
B: PL120100.040
E: 03.93 / T. Weiß
G: 06.93 / T. Weiß
Chapter: 4
Page: 1
Bild: PL-0005.TIF
855
2348
Chapter 4: Transport - Siting

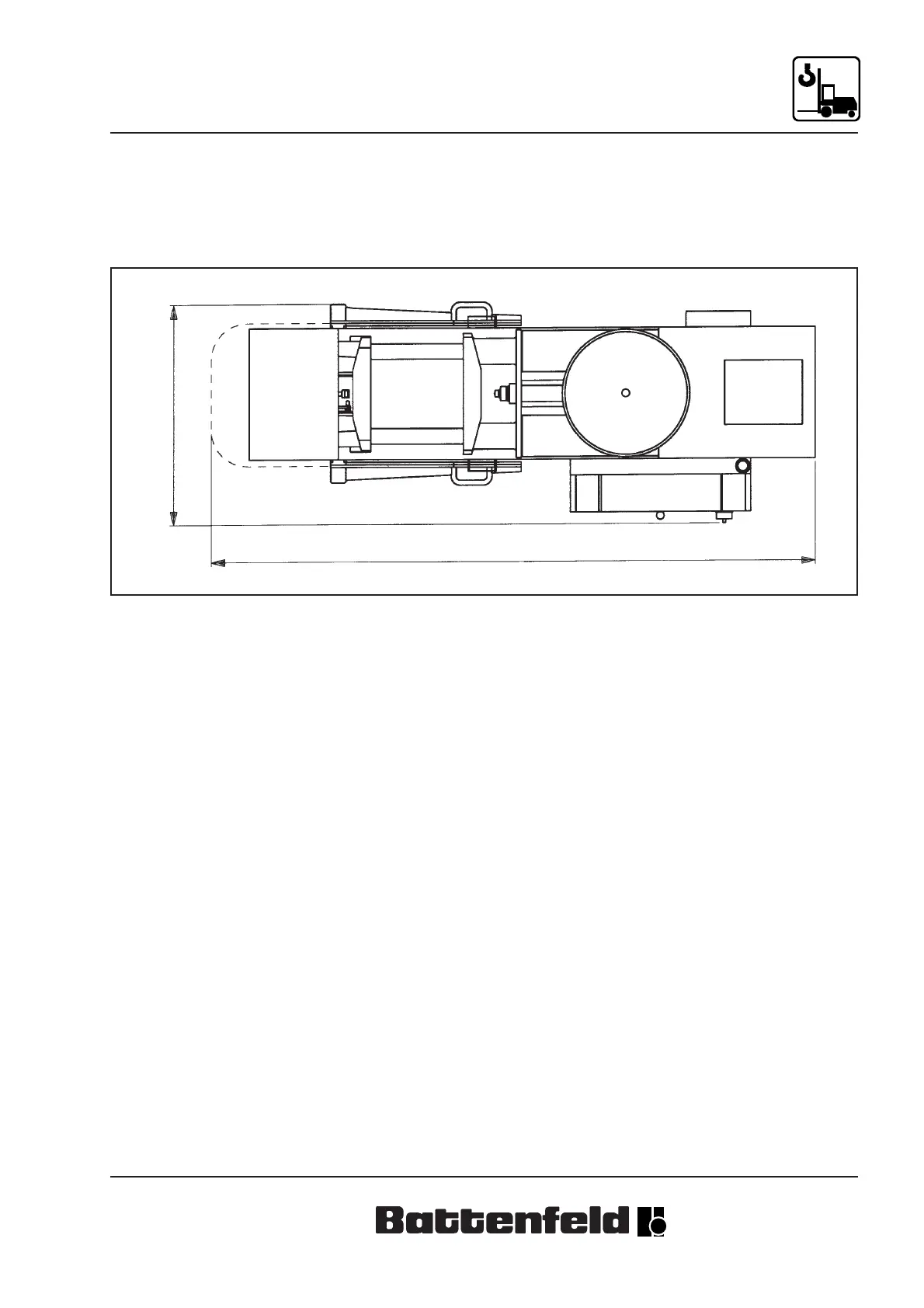

4.1 Spatial requirement plan
At least 600 mm (23.62 in.) of clearance should be left around
the injection moulding machine for maintenance works.
4.2 Transport of machine
The machine frame contains four clearance holes (D = 50
mm); thus the machine may be transported by means of an
appropriate hoisting devices as well.
In addition, the wooden planks secured to the bottom of the
machine allow for transport by forklift truck.
