Structure and Function
A: PL120100.052
B: PL120100.052
E: 03.93 / T. Weiß
G: 03.93 / T. Weiß
Chapter: 5.2
Page: 4
?
number.
Adjust the fastening nuts.
5. Withdraw the closing platen (Item 4) towards the
fastening nut until the limit stop is reached. Make sure that
the markings match.
6. Pull back closing plate to nut until limit stop is reached.
7. Screw festening nut close to fastening nut (distance 2 mm)
and observe compatibility of fastening bore.
7. Insert and tighten fastening screws (torque 40 Nm).

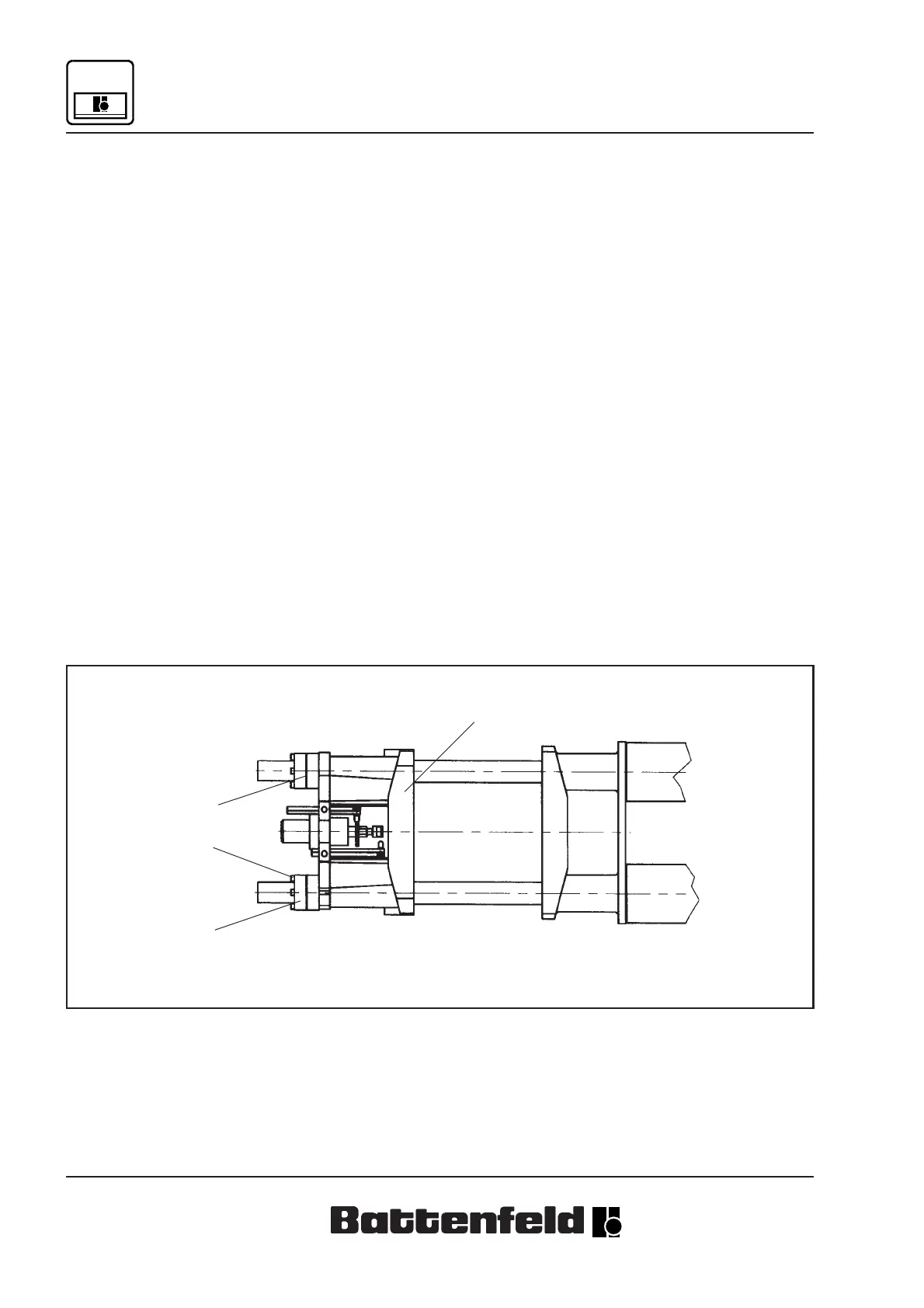

The long guiding device of the piston rod and closing plate
ensures that no plate parallelism error can occur as a result
of fitting height adjustment.
1
2
4
3
Bild: PL-0011.TIF
