Parameter description
Parameter manual b maXX
®
1000
Document no. 5.07004.03 Baumüller Nürnberg GmbH
128
of 208
4.3
P1217

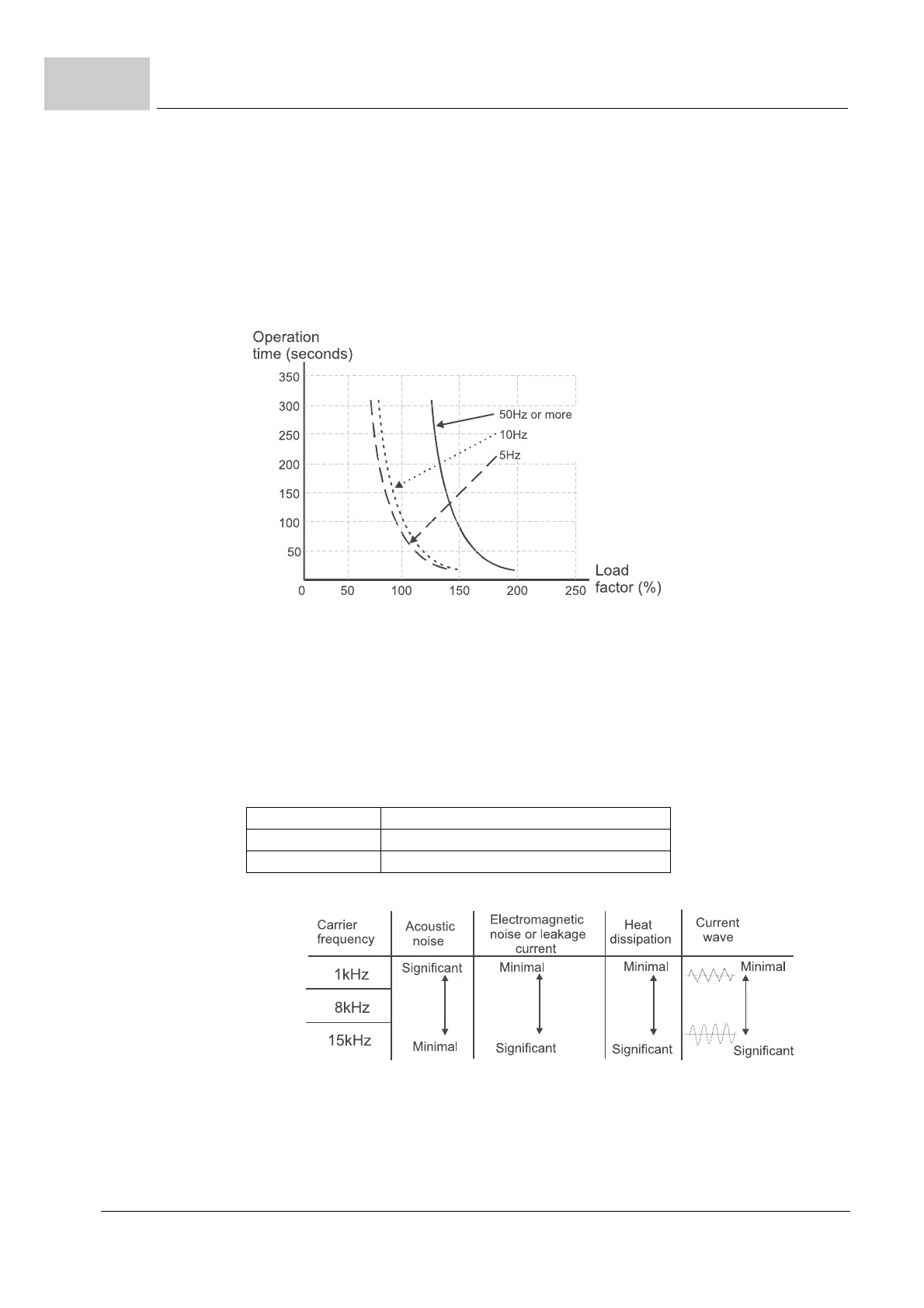

The parameter determines the time required for activating the I2t electronic thermal pro-
tection function. The graph below shows I2t curves for 150 % output power for 1 minute.
Figure 57: Electronic thermal characteristic
P1240
This parameter determines the PWM carrier frequency of the b maXX
®
1000.
Figure 58: PWM carrier frequency selection
P1217
Elektron. thermische Kennlinie 30 to 600 s
EE Electronic thermal characteristic 60 s
STOP BM_u_ElectronicThermalCharacteristic 1:1 -
P1240
PWM Frequenz Auswahl 1 to 15 kHz
EE PWM carrier frequency selections 8 kHz
STOP BM_u_PWMCarrierFrequencySelections 1:1 -
Power 0.2 kW to 11 kW
Setting Range 1 to 15 kHz
Factory Setting 8 kHz
