Baumuller b maXX 1000 - Introduction of the Device Control

Drive Management
Parameter manual b maXX
®
1000
Document no. 5.07004.03
11
of 208
3
n ERROR REACTION ACTIVE
m Application can be reparameterized
m An error-dependent action is carried out
m Drive operation can be enabled
n ERROR
m Application can be reparameterized
m Drive function is inhibited
m Drive is not ready to run

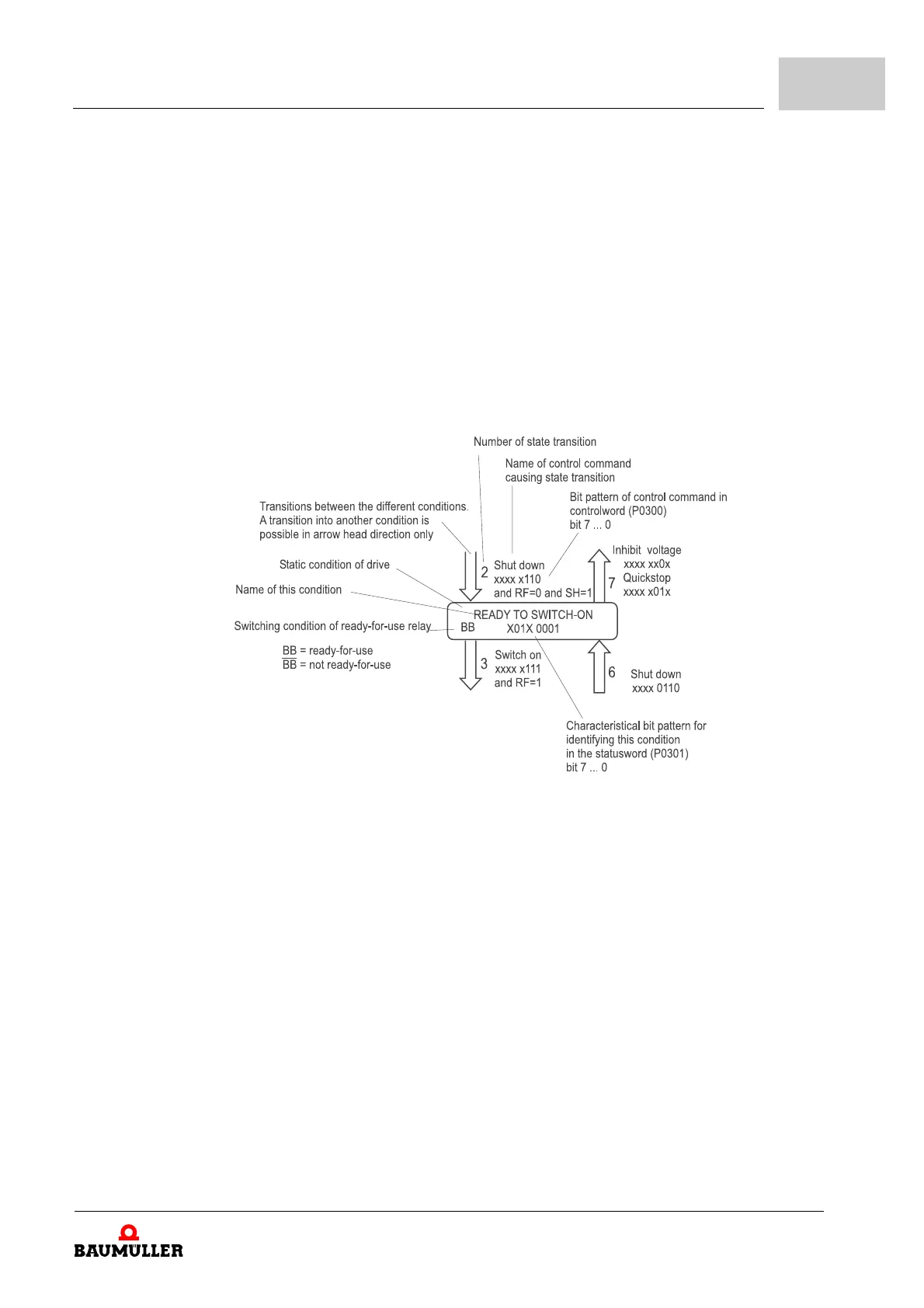

Introduction of the device control display
Figure 1: Introduction of the device control
Within the status (see ZFigure 1– the bits 7 ... 0 of the status word ZP0301– in binary
form are shown as XXXX XXXX.
At the transition states (arrows, seeZFigure 1– above) the bits 7 .... 0 of the control word
ZP0300– are shown in binary form as xxxx xxxx.
All digits, which are marked with X (that means the bits of the status word) or x (that
means the bits of the control word) are without a meaning for the control of the status ma-
chine and the representation of the current status.
