Parameter
Parameter manual b maXX
®
1000
Document no. 5.07004.03
71
of 208
4
P1010
Free selectable identification number of saved parameter set. For customer to identify the
version of the parameter setting for different data sets.
P1070

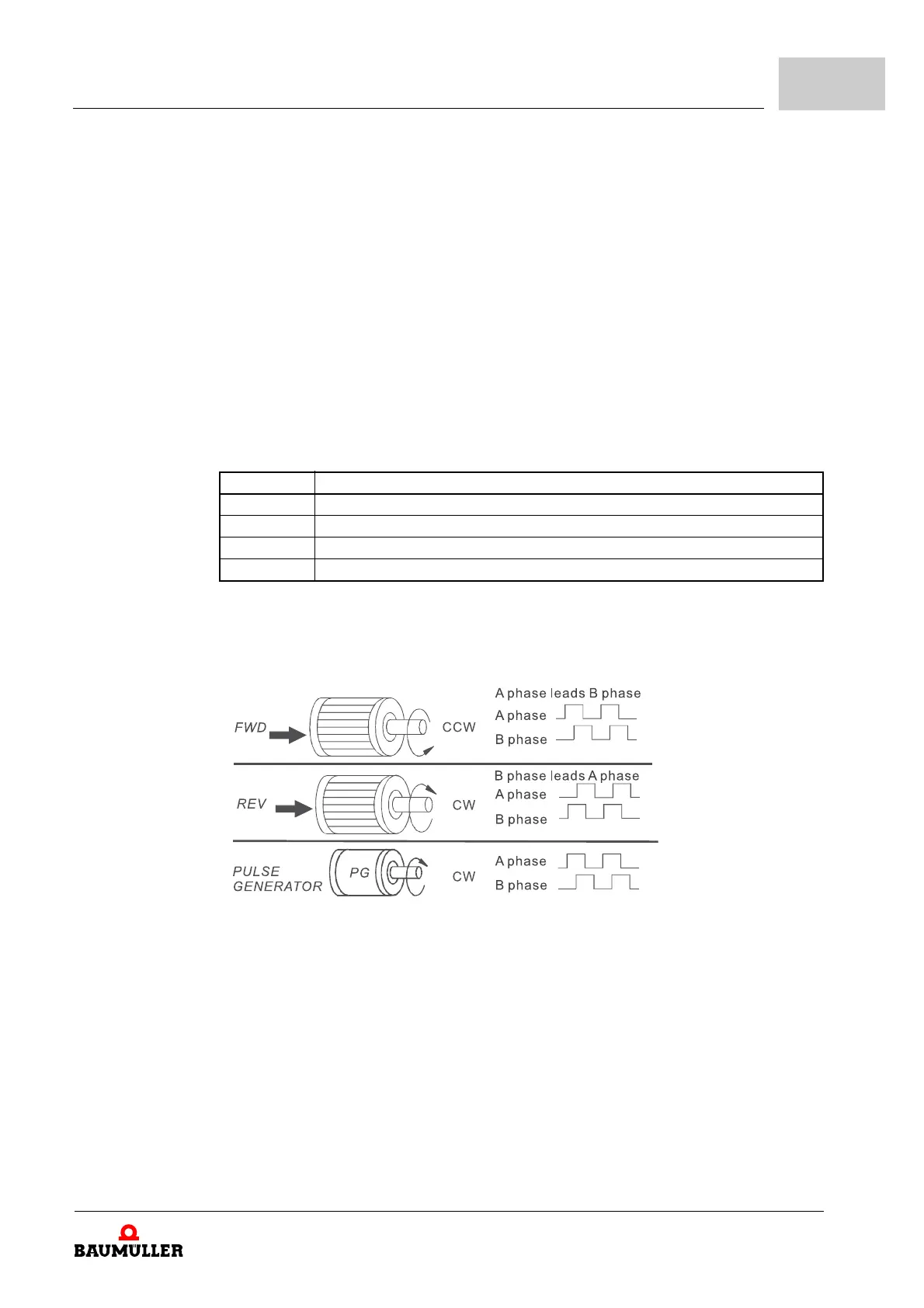

The relationship between the motor rotation and PG input is illustrated below:
P1071
A pulse generator PG is used as a sensor that provides a feedback signal of the motor
speed. This parameter defines the number of pulses for each cycle of the PG control (1
pole pair max. 20000 Inc.)
P1010
Datensatz Identifikations-Nummer 0 to 65535
EE Data set ID 0
STOP BM_u_RecordId 1:1
P1070
PG Funktionsauswahl 0 to 3
EE PG function selection (enable card) 0
STOP BM_PGFunctionSelection 1:1 -
Value Meaning
0 Disable Pulse generator PG
1 Single phase
2 Forward/counter clockwise rotation
3 Reverse/clockwise rotation
ZP1070– = 2
ZP1070– = 3
P1071
PG Strichzahl Bereich 0 to 20000 Inc
EE PG pulse range 600 Inc
STOP BM_u_PGPulseRange 1:1 -
