Pin assignment

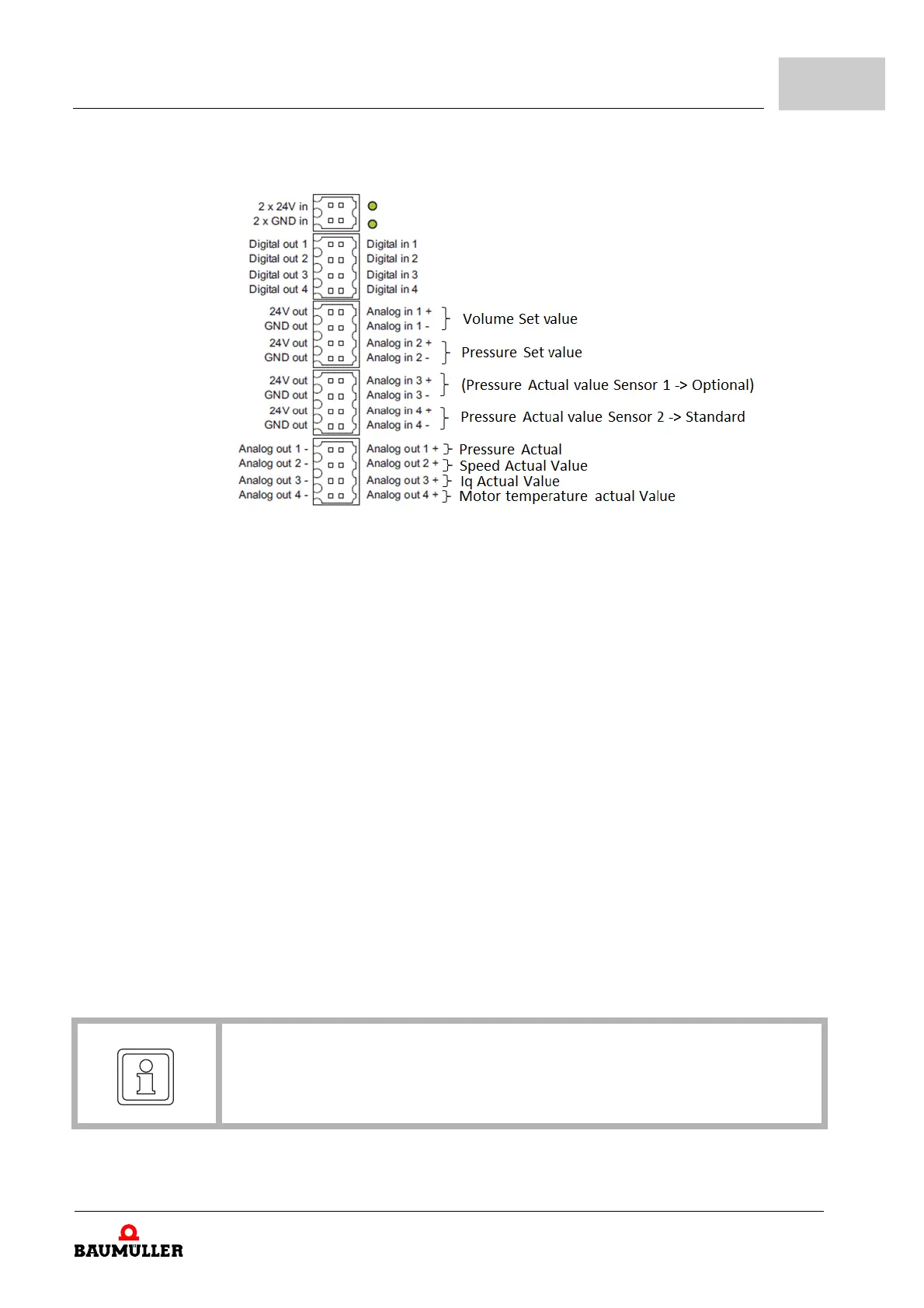

Figure 17: Pin assignment SVP-001-00X as analog interface
Depending on the used add-on module SVP the following signal forms are required:
m Volume set value interface (Analog input 1 of add-on module SVP):
SVP-001-001/2 Voltage input (0 - 10 V)  Volume set value from 0 - 10 V is required.
SVP-001-003 Current input (0/4 - 20 mA)  Volume set value from 0/4 - 20 mA is required.
m Pressure set value interface (Analog input 2 of add-on module SVP):
SVP-001-001/2 Voltage input (0 - 10 V)  Pressure set value from 0 - 10 V required.
SVP-001-003 Current input (0/4 - 20 mA)  Pressure set value from 0/4 - 20 mA required.
m Pressure actual value interface (Analog input 3 or 4 of add-on module SVP):
SVP-001-001 Voltage input (0 - 10 V)  Pressure sensor with voltage output (0 - 10 V) is required.
SVP-001-002/3 Current input (0/4 - 20 mA)  Pressure sensor with current output (0/4 - 20 mA) is
required.
NOTE!
Add-on module SVP-001-00X requires an own 24 V-supply.
