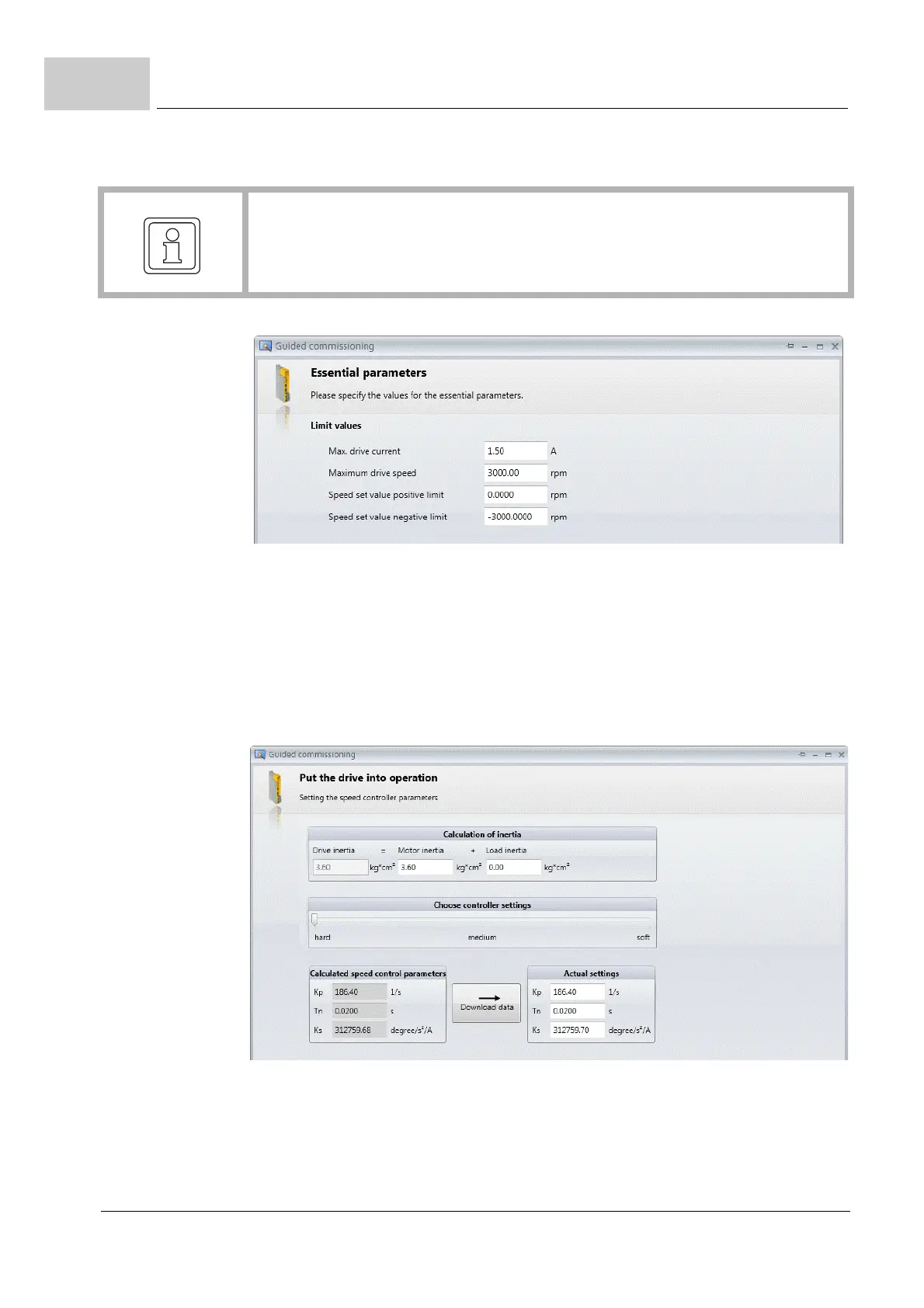

Figure 31: Guided commissioning: Essential parameter settings
h Click on „Continue“
h If known, set the load inertia. 
Set the controller settings to „ha
rd“. 
The controller calculates the Kp, Tn and Ks valu
es which can be accepted by clicking
on „Download data“.
Figure 32: Guided commissioning: Speed controller parameters
h Click on „Continue“
NOTE!
It
is advised to set the „Speed set value positive limit“ on beginning to zero, to pre-
vent any damage on the servo pump.
