Baumuller b maXX 5000 - Commissioning Set;Actual Values Via Fieldbus

Commissioning set /actual values via fieldbus
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02 Baumüller Nürnberg GmbH
42
of 76
4.2
4.2 Commissioning set /actual values via fieldbus
h Select „Synchronizing off or on“ as needed and set the Fieldbus values depending
on your application.

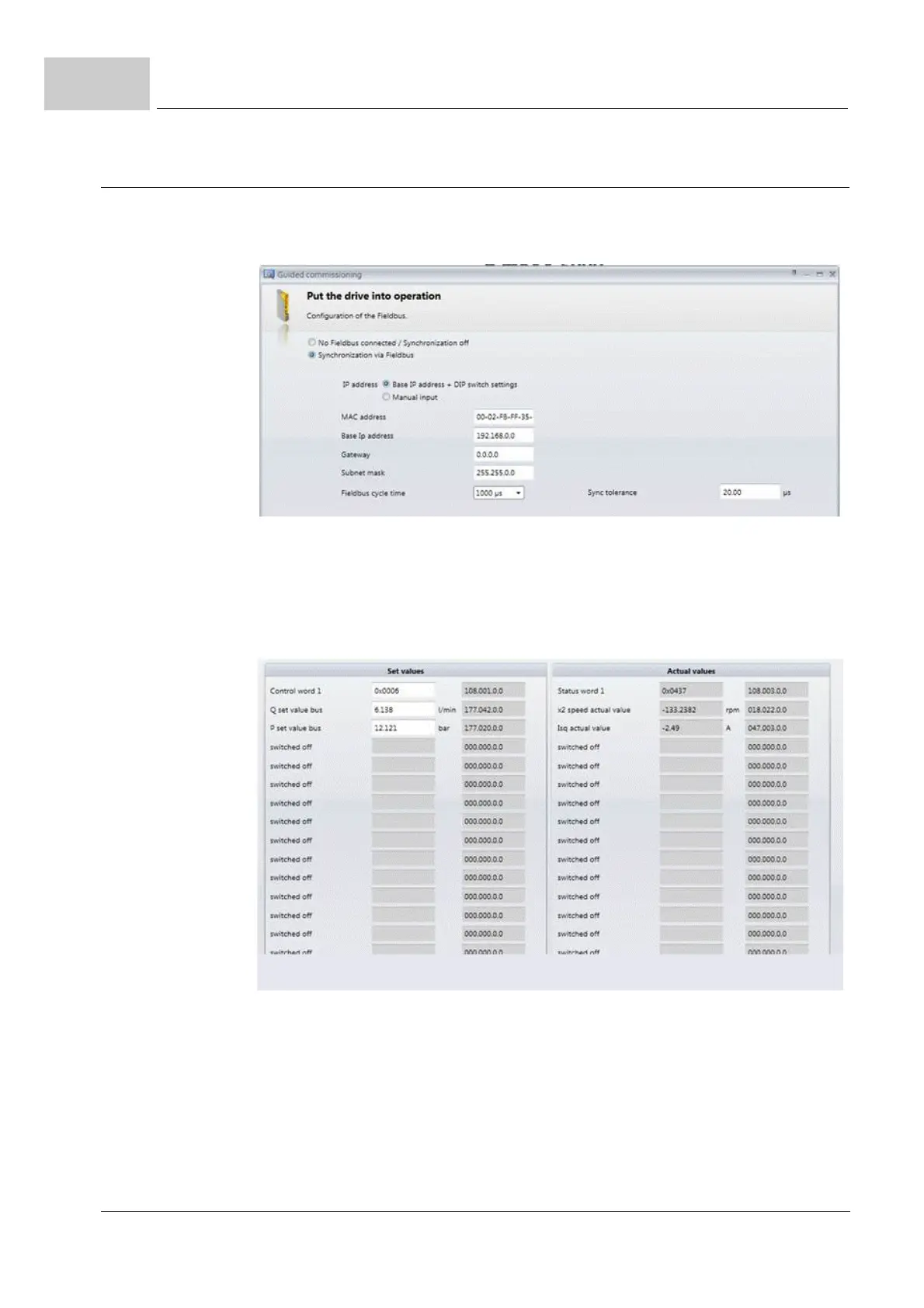

Figure 42: Guided commissioning: Fieldbus configuration
h Click on „Continue“
h Check the fieldbus process data mapping.
Figure 43: Guided commissioning: Data mapping
h Click on „Continue“
