Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02
4GUIDED COMMISSIONING
This chapter describes the guided commissioning function of the servo pump in the
b maXX 5000. The guide is described using graphics and a short of explanation.
4.1 Start
h Start the guided commissioning by clicking on „Start guided commissioning“ at the 
„Applications  Servo pump V1  SP v1 general“ tab. 

Follow this assistant.

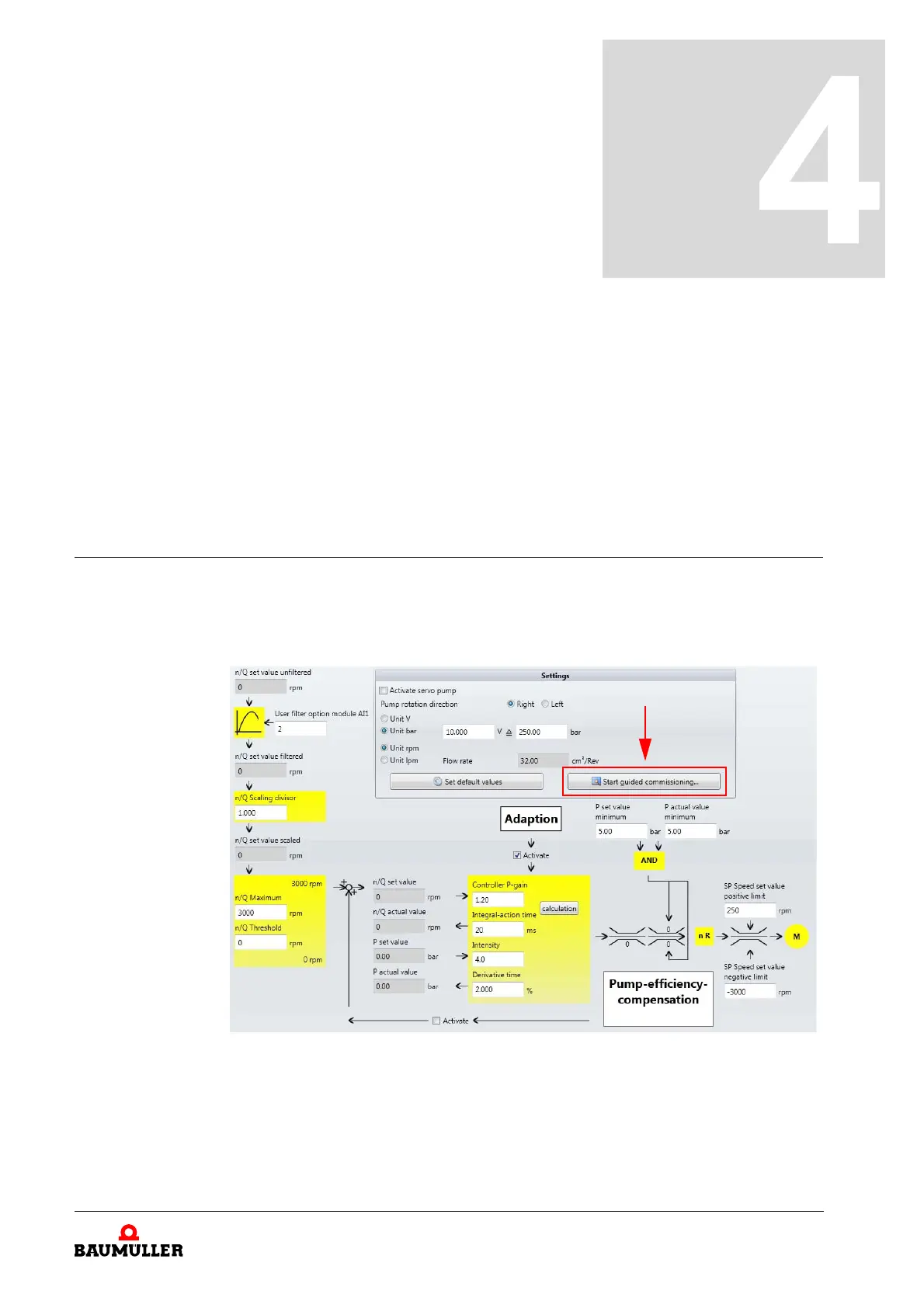

Figure 25: Servo pump start guided commissioning
