Baumuller b maXX 5000 - Guided Commissioning: Selecting the Encoder; Guided Commissioning: Selecting the Motor; Guided Commissioning: Selecting the Temperature Sensor

Guided Commissioning
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02
33
of 76
4
h Select the used encoder type by clicking on „Encoder database“.
Please ensure you select the right encoder to prevent any damage to the used encoder
du
e to overvoltage.

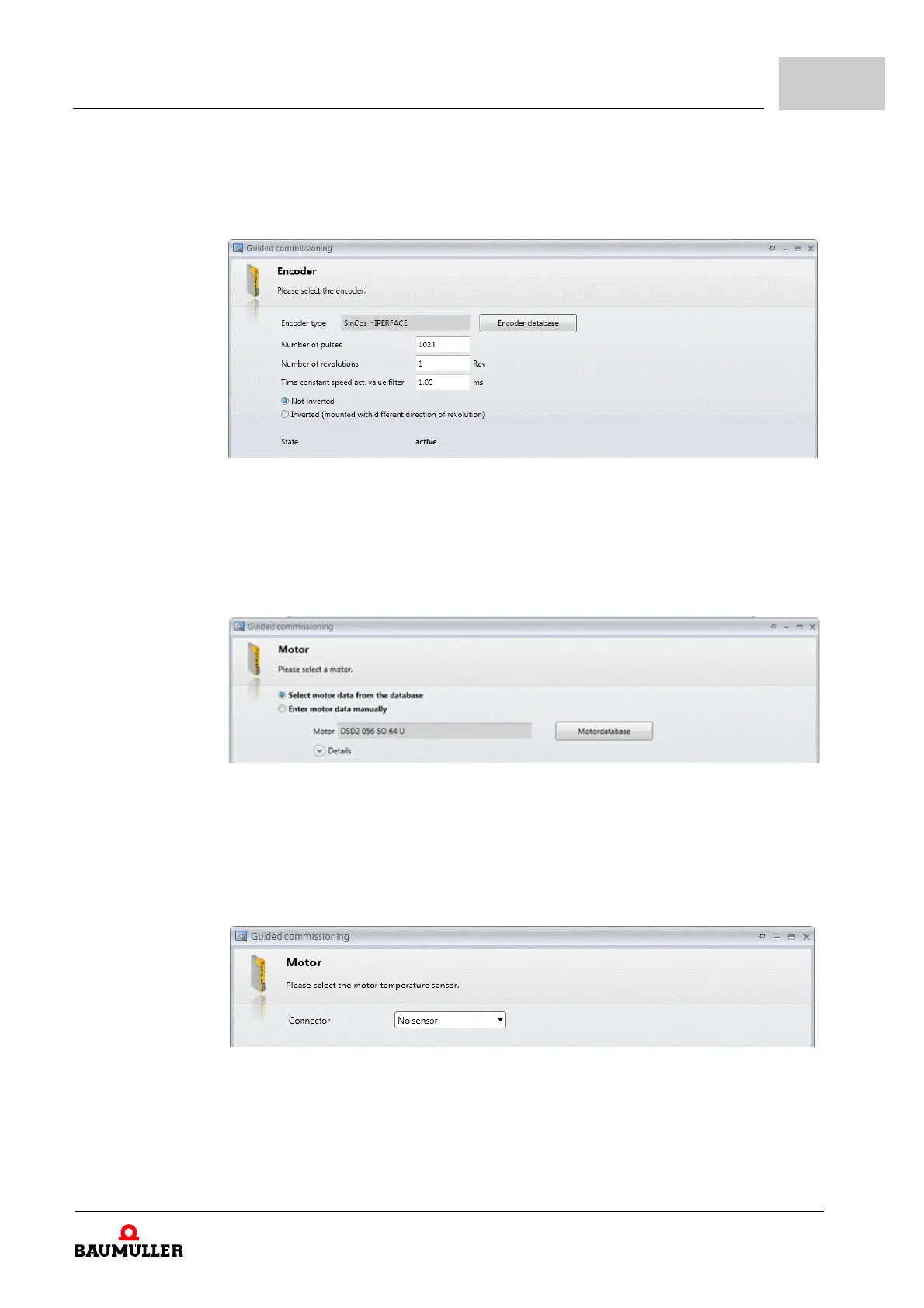

Figure 28: Guided commissioning: Selecting the encoder
h Click on „Continue“
h Select a motor either from the „Motor database“ or enter motor data manually if your
motor is not listed in the database.
Figure 29: Guided commissioning: Selecting the motor
h Click on „Continue“
h If connected, select the type of temperature sensor connected to the controller and
check values.
Figure 30: Guided commissioning: Selecting the temperature sensor
h Click on „Continue“
h Check, and
if necessary change values.
