All analog IOs must be released via parameter ZP177.2–. In Parameter ZP177.3– an
oversampling can be set and furthermore the range of current signal 
(0 - 20 mA or 4 - 20 mA) can be selected.
In the following table is defined which add-on module is required regarding set and actual
value signal form.
3.3.1 Connection pressure sensor with current interface
Connection example for a pressure sensor with current output (2-wire version):

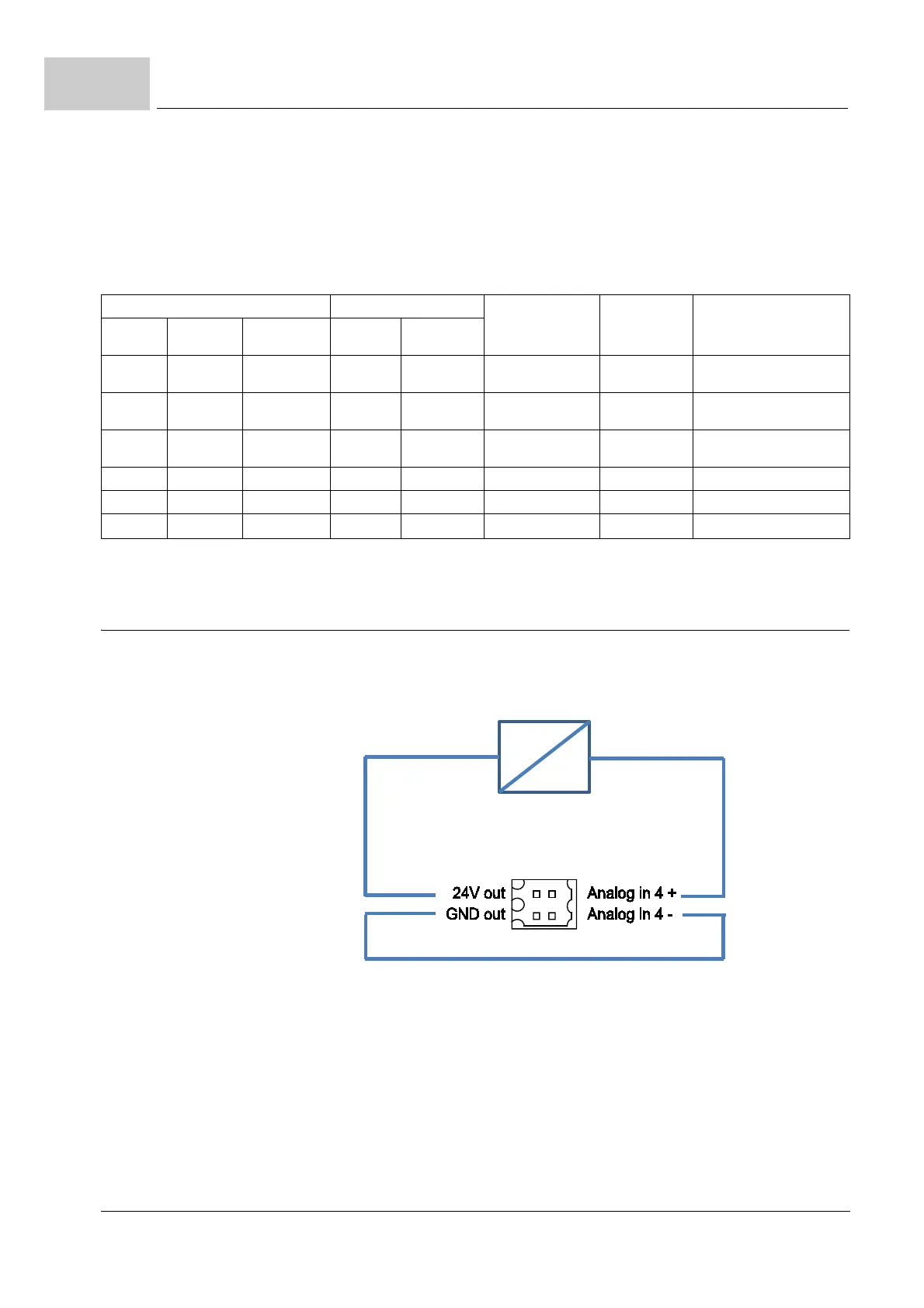

Figure 23: Typical connection pressure sensor with current interface
The 24 V supply of pressure sensor is directly supplied by the add-on module SVP.
Set values pressure and volume Pressure actual value Required add-on
module SVP
Resolution
pressure
actual value
Dataset setting
Field bus Voltage
0 – 10 V
Current
0/4 - 20 mA
Voltage
0 – 10 V
Current 0/4 -
20 mA
x x - 12 Bit Field bus with standard
module X6
x x SVP-001-001 14 Bit Field bus with add-on
module SVP
x x SVP-001-002/3 14 Bit Field bus with add-on
module SVP
x x SVP-001-001 14 Bit Analog
x x SVP-001-002 14 Bit Analog
x x SVP-001-003 14 Bit Analog
Supply 24 V
Output 0/4..20mA
Pressure Transmitter
Pressure sensor
