Baumuller b maXX 5000 - Commissioning Set;Actual Values Via Analog Interface

Guided Commissioning
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02
45
of 76
4
4.3 Commissioning set /actual values via analog interface
h Set the scaling of the „Volume set value“.

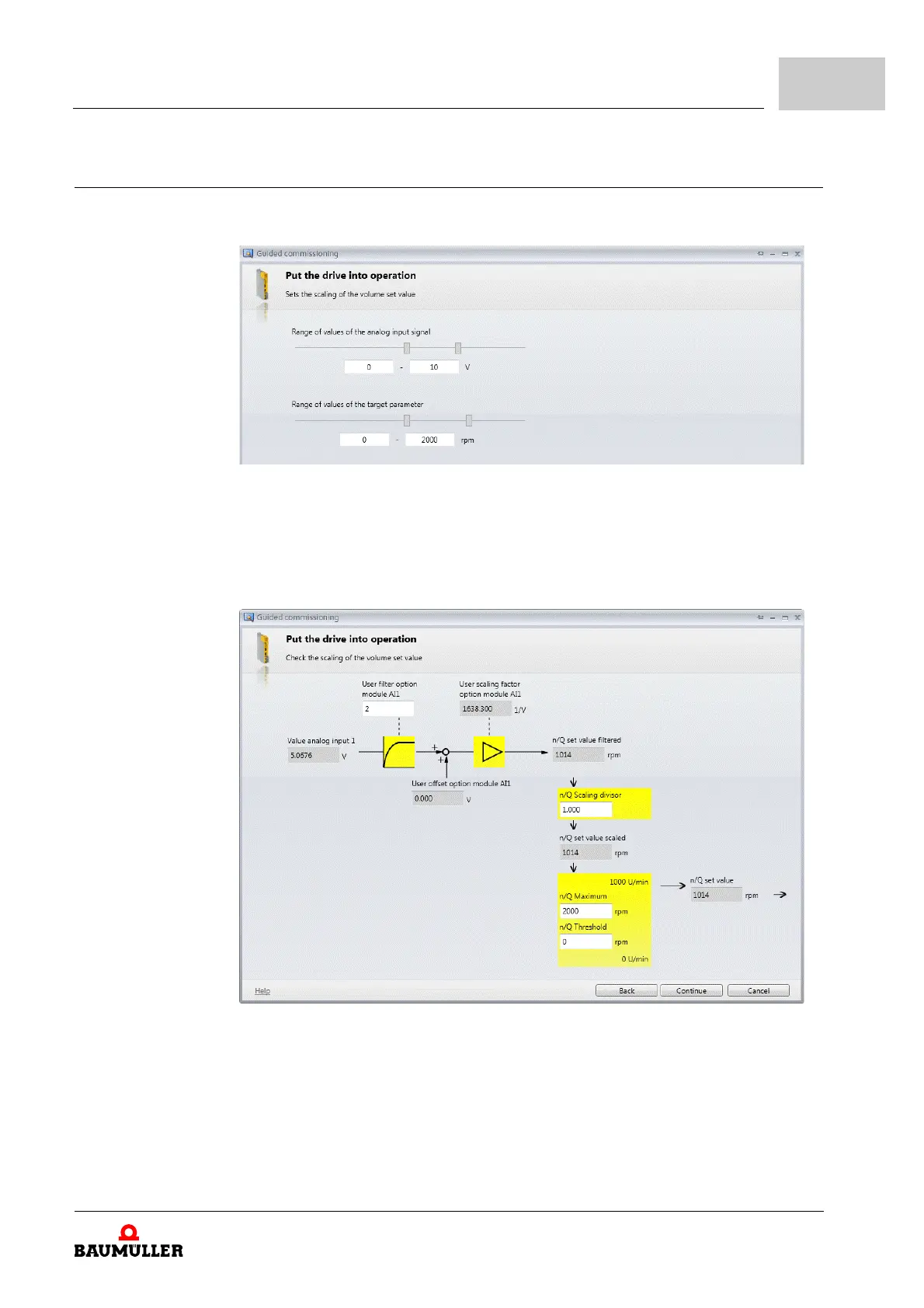

Figure 47: Guided commissioning: Scaling pressure set value
h Click on „Continue“
Here you can check the previous made scaling settings for the „Volume set value“.
Figure 48: Guided commissioning: Check volume set scaling
h Click on „Continue“
