Commissioning set /actual values via fieldbus
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02 Baumüller Nürnberg GmbH
44
of 76
4.2
h Set the scaling of the pressure set value.

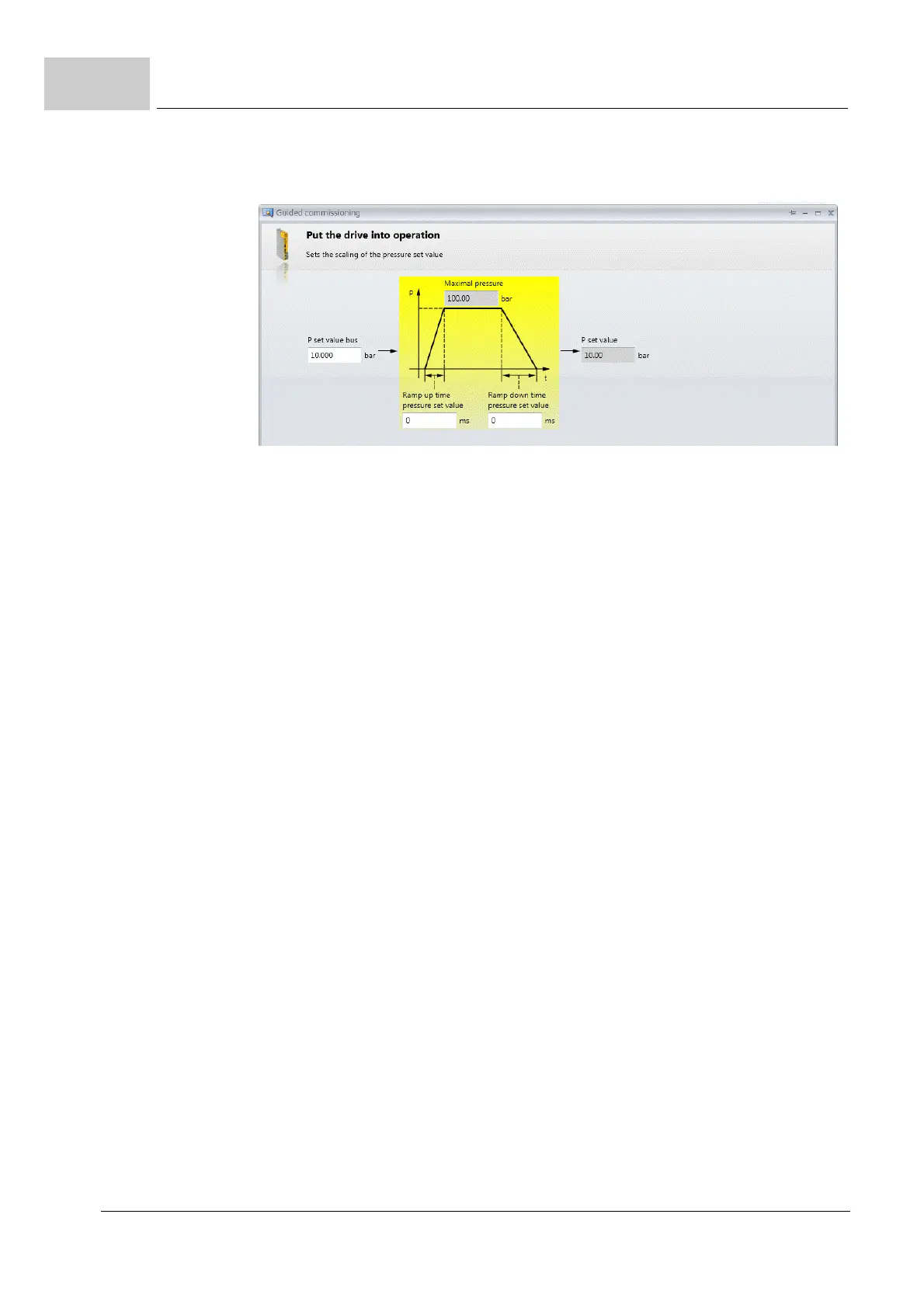

Figure 46: Guided commissioning: Scaling pressure set value
h Click on „Continue“
If you have set either „Fie
ldbus with standard module“ or „Fieldbus with add-on mod-
ule“, continue reading Zpage 47–.
