Guided Commissioning
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02
43
of 76
4
h Reset the operator's control by clicking on it.

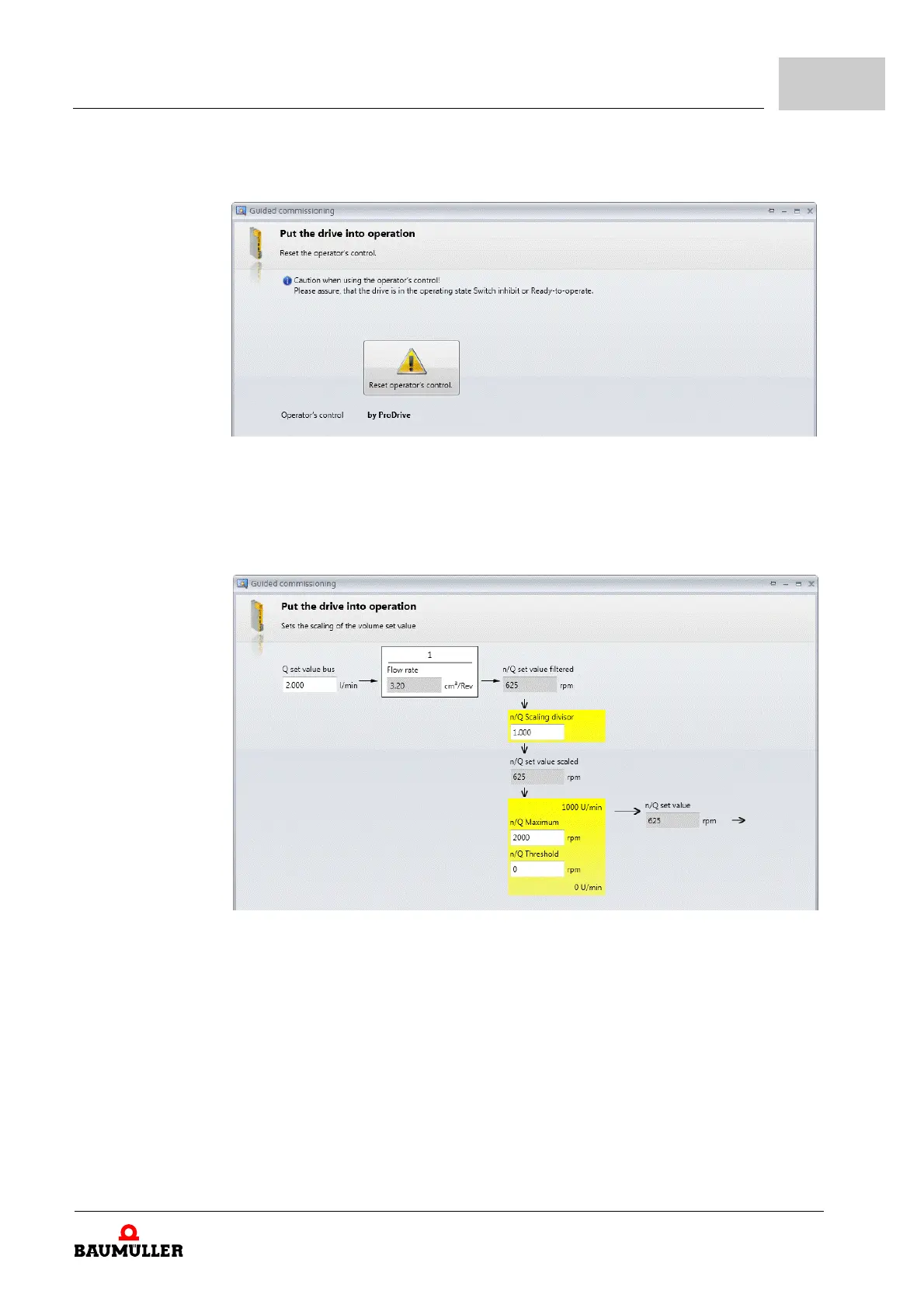

Figure 44: Guided commissioning: Operation control
h Click on „Continue“
h Set the scaling of the volume set value.
Figure 45: Guided commissioning: Scaling volume set value
h Click on „Continue“
