Baumuller b maXX 5000 Application Handbook

Reading in of pressure and volume set/actual values
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02 Baumüller Nürnberg GmbH
24
of 76
3.2
3.2.3 Field bus combined with standard analog IO X6
In this case the pressure and volume set value is set via field bus parameter:
m Volume set value interface:
ZP177.42– Q Set value field bus DINT Scaling: ml/min
Pressure set value interface :
ZP177.20– P set value field bus DINT Scaling: mBar
The pressure actual value can only be read in at analog input 1 or 2 of connector X6 range
0 - 10 V.

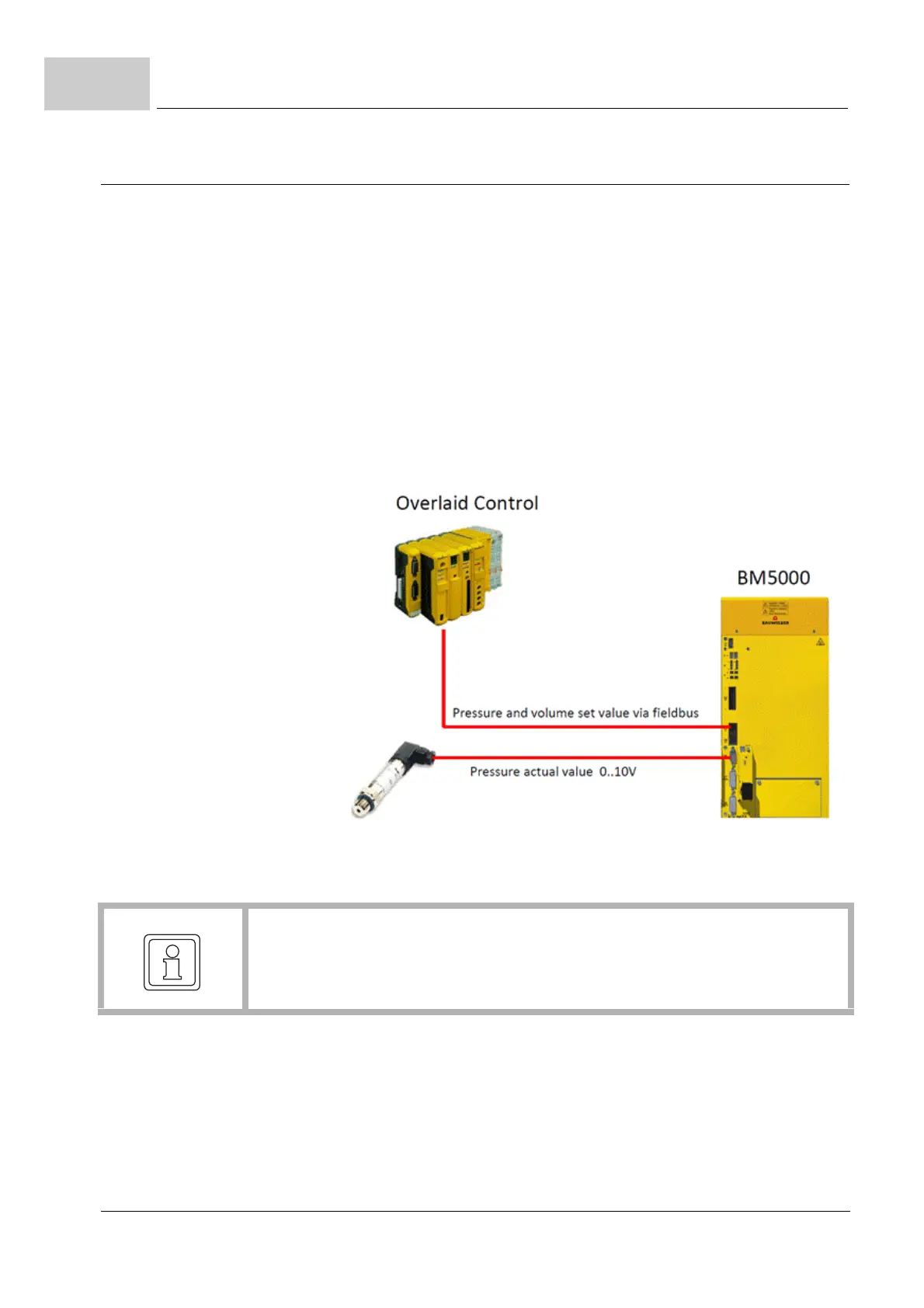

Figure 20: Field bus combined with standard analog IO X6
Pressure
sensor
NOTE!
In this configuration no add-on module SVP is necessary.
