Baumuller b maXX 5000 Application Handbook

Installation
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02
25
of 76
3
Pin assignment

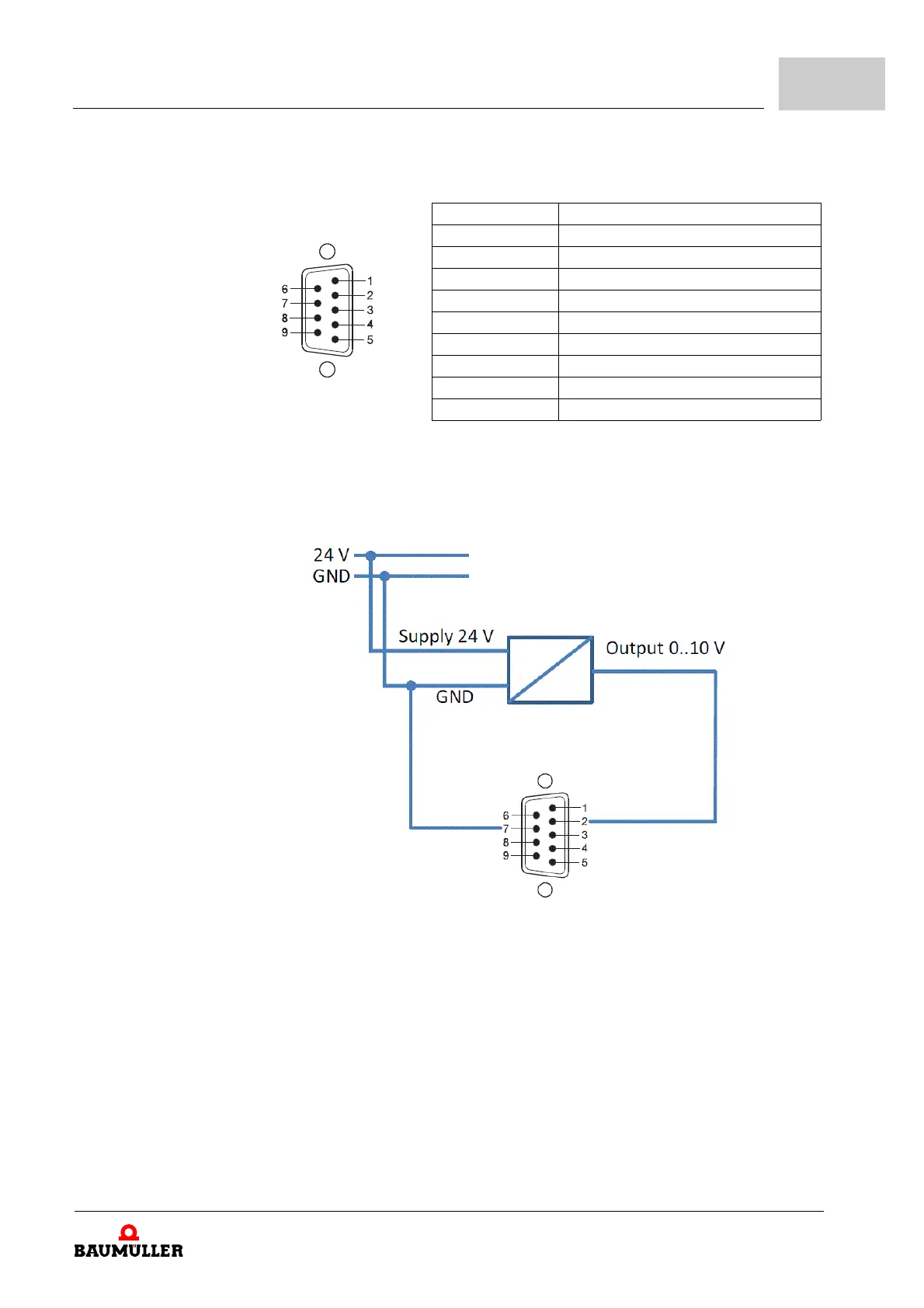

Typical connection pressure sensor on standard analog IO X6 with extern 24 V supply
Figure 21: Typical connection pressure sensor on standard analog IO X6
D-sub connector 9-pin
Pin No. Assignment
1 Actual pressure value sensor 1 +
2 Actual pressure value sensor 2 +
3 OUT 1 - , OUT 2 -
4 OUT 1 +
5 OUT 2 +
6 Actual pressure value sensor 1 -
7 Actual pressure value sensor 2 -
8 OUT 1 - , OUT 2 -
9 OUT 1 - , OUT 2 -
Pressure sensor
