Reading in of pressure and volume set/actual values
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02 Baumüller Nürnberg GmbH
20
of 76
3.2
3.2 Reading in of pressure and volume set/actual values
It is possible to switch the interface using the bit numbers 8 and 9 in ZP177.3– according
to the following table:
ZP177.3– = XXXX XXXX XXXX XXXX
11 | Add-on module SVP as analog interface (see Zpage 20–)
01 | Field bus combined with add-on module SVP (see Zpage 22–)
10 | Field bus combined with standard analog IO X6 (see Zpage 24–)
3.2.1 Add-on module SVP as analog interface
In this case the volume set value is set using analog module SVP-001-00X in slot B of the
b maXX controller.
The set pressure value and actual value are also provided via analog module SVP-001-
00X in slot B of the b maXX controller.
The pressure actual value can be read in from 0/4 - 20 mA or 0 - 10 V.

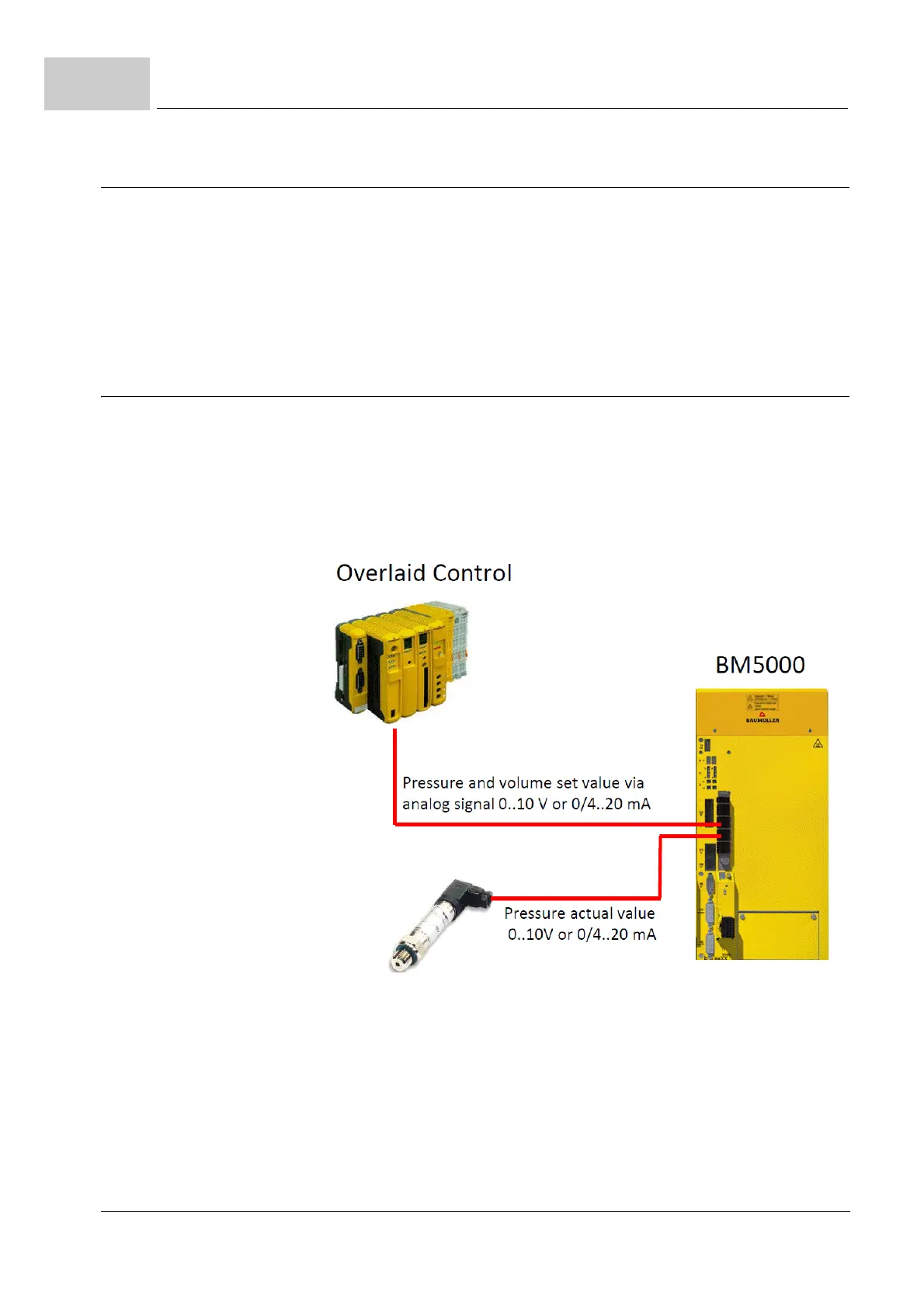

Figure 16: SVP as analog interface
Pressure
sensor
