Baumuller b maXX 5000 - Guided Commissioning: First Window; Guided Commissioning: Power Unit

Start
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02 Baumüller Nürnberg GmbH
32
of 76
4.1
h Select the desired add-on to begin the commissioning.

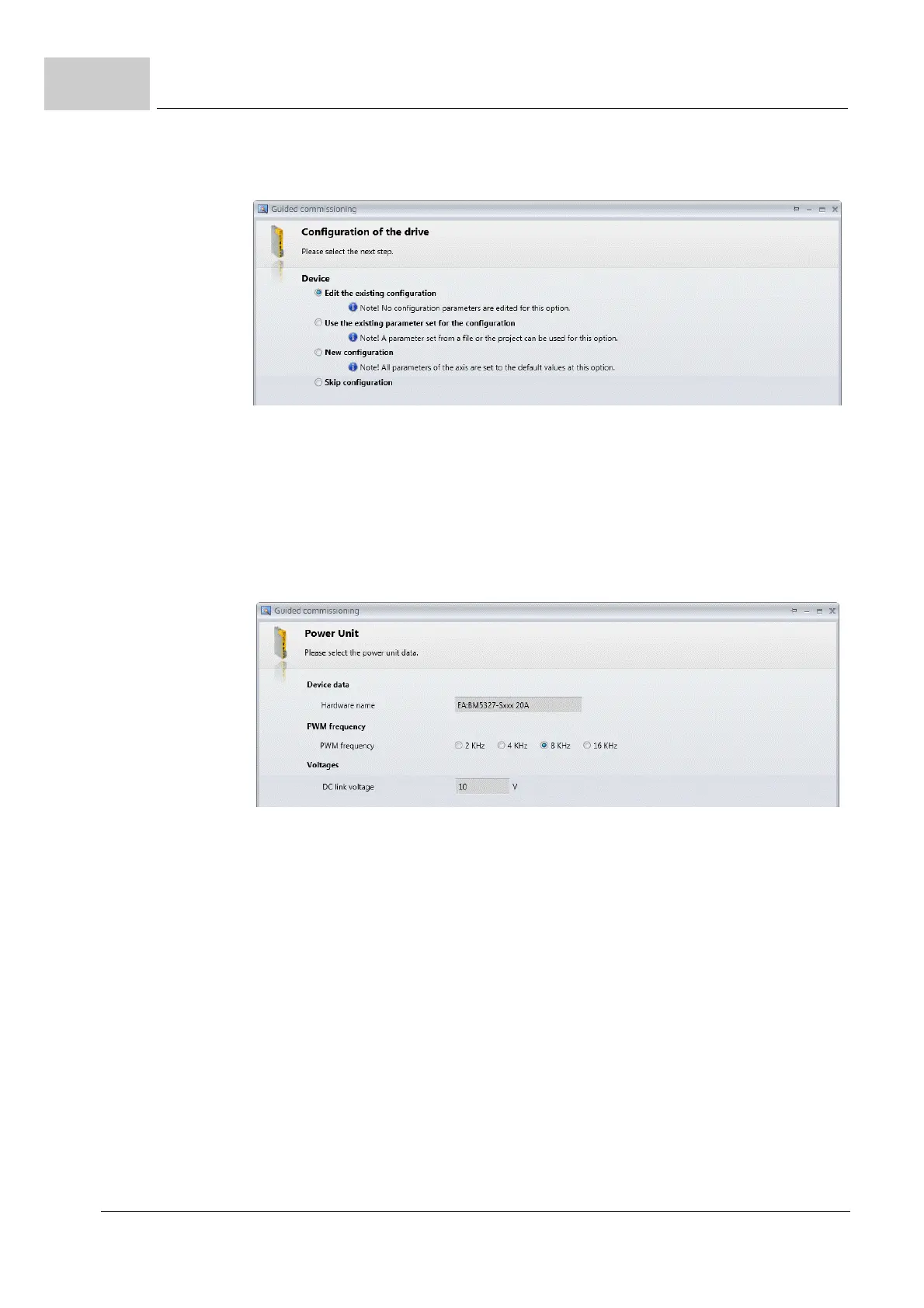

Figure 26: Guided commissioning: First window
h Click on „Continue“
Device data: The actual drive-type.
PWM frequency: Select the desired PWM frequency for running the motor.
DC link voltage: Shows you the actual DC link voltage.
Figure 27: Guided commissioning: Power unit
h Click on „Continue“
