Baumuller b maXX 5000 Application Handbook

Installation
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02
23
of 76
3
Pin assignment

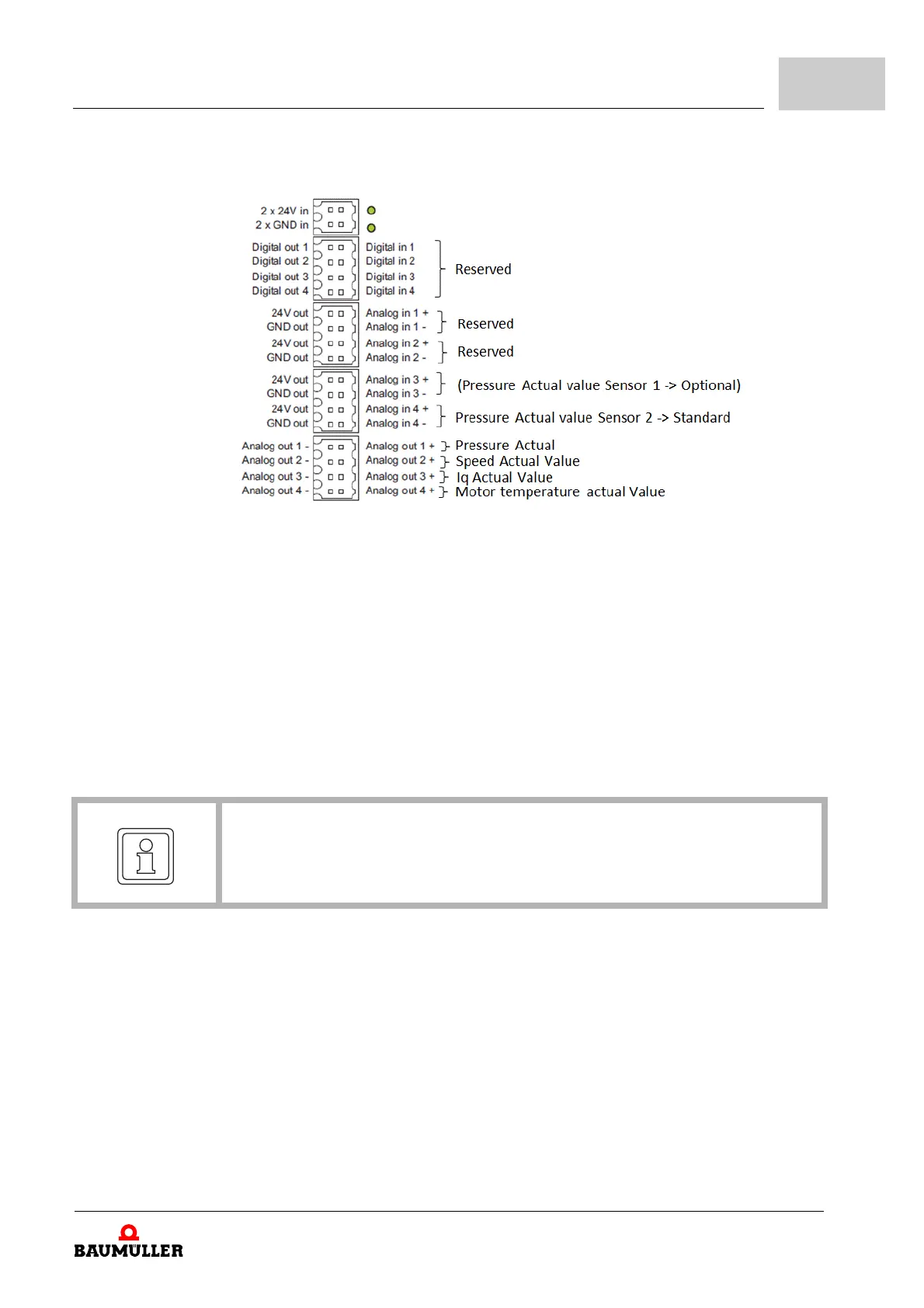

Figure 19: Pin assignment field bus combined with SVP-001-00X
Depending on the used add-on module SVP the following signal forms are required:
m Pressure actual value interface (analog input 3 or 4 of add-on module SVP):
SVP-001-001 Voltage input (0-10 V)  
Pressure sensor with voltage output (0-10 V) is required.
SVP-001-002/3 Current input (0/4 - 20 mA)  
Pressure sensor with current output (0/4 - 20 mA) is required.
NOTE!
add-on module SVP-001-00X requires an own 24 V-supply.
