Commissioning set /actual values via analog interface
Application handbook Servo pump function V1 for BM5000
Document No.: 5.17002.02 Baumüller Nürnberg GmbH
46
of 76
4.3
h Set the scaling of the „Pressure set value“.

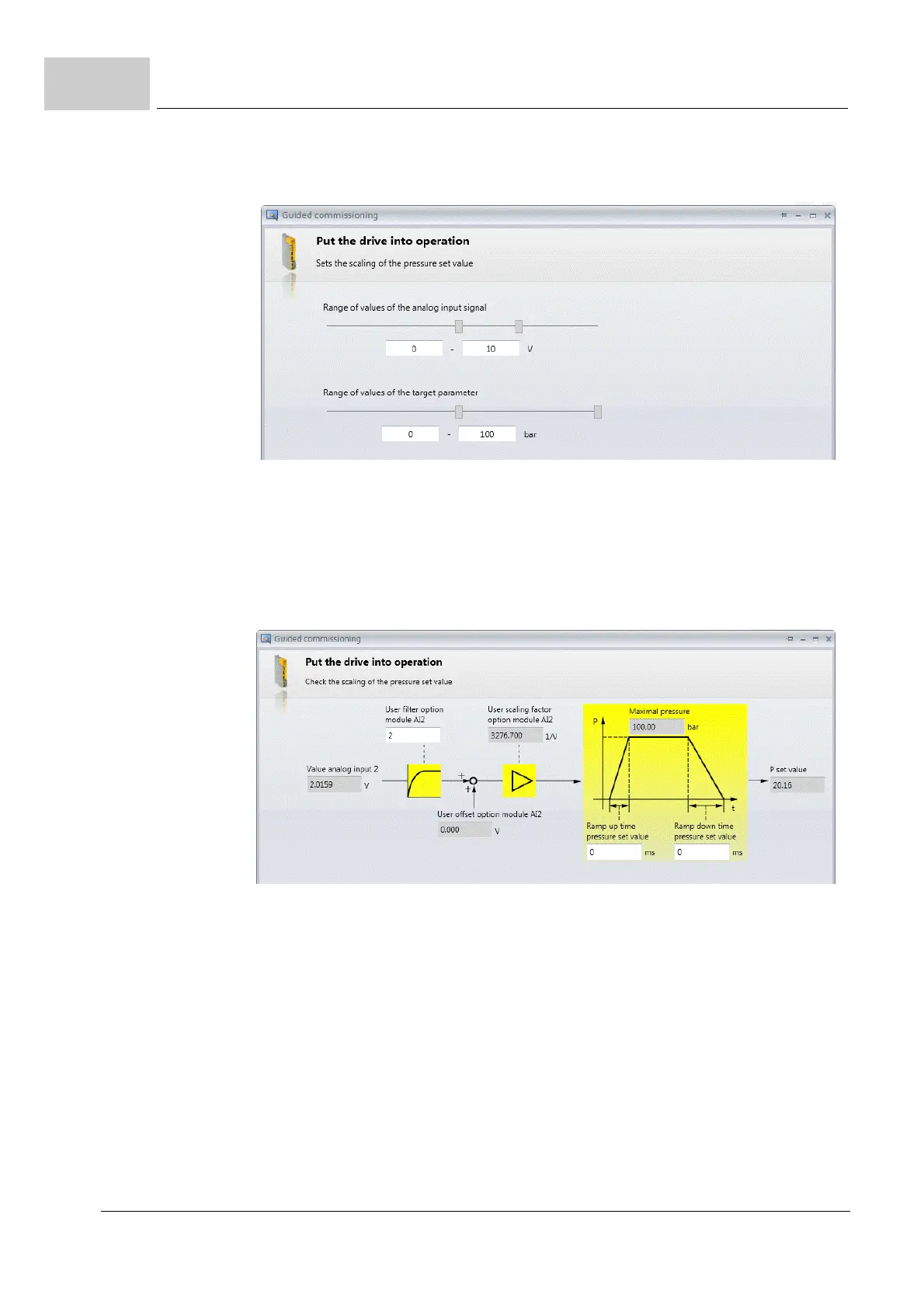

Figure 49: Guided commissioning: Scaling pressure set value
h Click on „Continue“
h Here you can check the previous made scaling settings for the „Pressure set value“.
Figure 50: Guided commissioning: Check scaling pressure set value
h Click on „Continue“
