Installation
Instruction Handbook b maXX (BM4-F-)ENC-XX (Encoder module)
Document No.: 5.01042.12
49
of 102
7

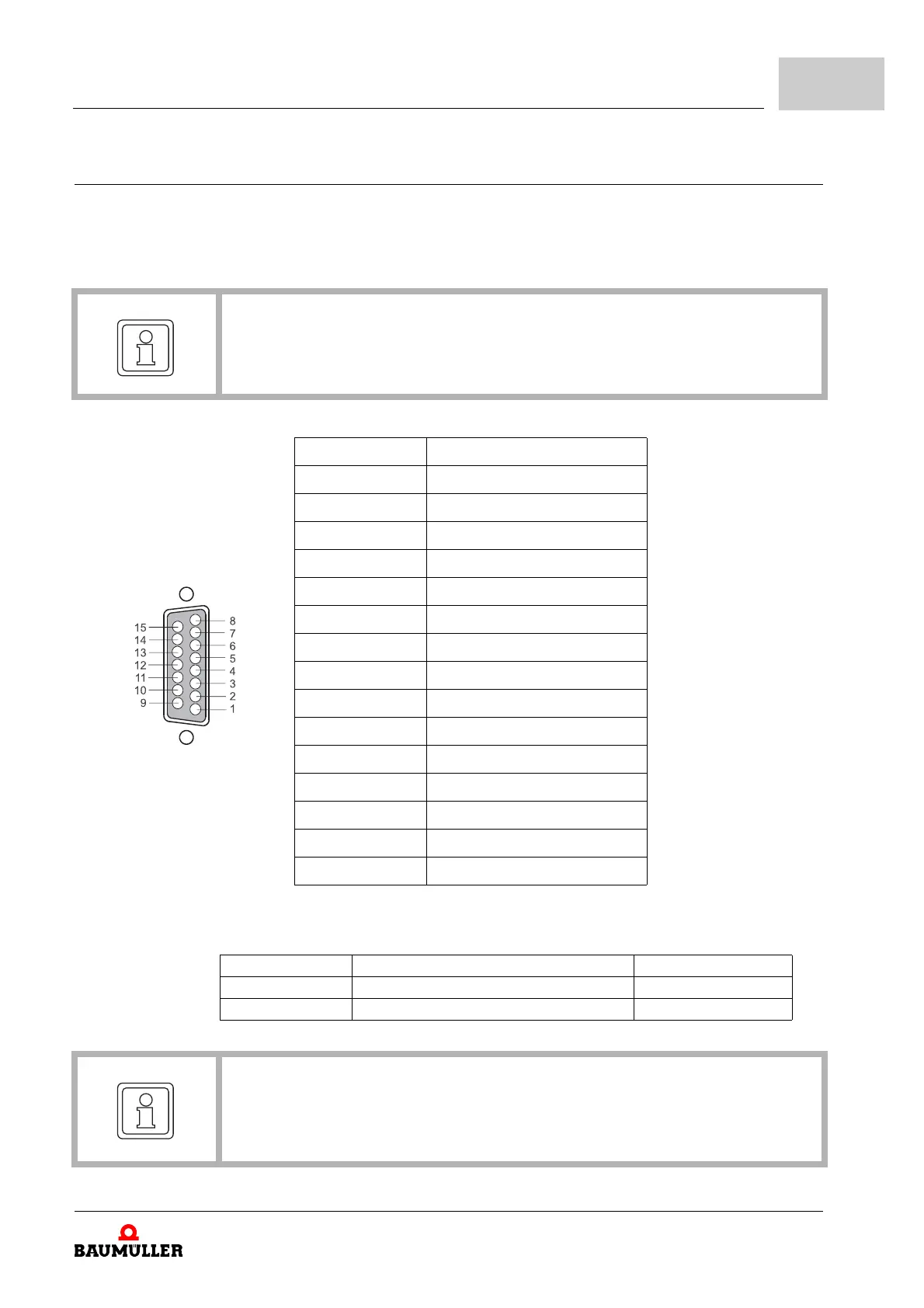

7.3.3 Pin assignment
Pin assignment (BM4-F-)ENC-01, (BM4-F-)ENC-11, (BM4-F-)ENC-21
m for resolver
1)
Requirements to the temperature sensor:
NOTE!
Resolvers are to be used only for motors with maximum ten pole pairs.
Pin assignment Pin No. Definition
Female Sub-D 15-pin
1 Resolver ref -
2 Resolver ref +
3 reserved*
4 reserved*
5 Resolver COS +
6 reserved*
7 Resolver SIN +
8 Resolver SIN -
9 Resolver COS -
10 reserved*
11 reserved*
12 reserved*
13 reserved*
14 Temperature sensor +
1)
15 Temperature sensor -
1)
* do not connect
Type Additional requirements Insulation
KTY84 - SELV/PELV
NTC (MSKL) R = 1kΩ at T
protection
, I
max
< 2mA SELV/PELV
NOTE!
The connection cable is provided ready-for-use, see ZEncoder cable 12-wire– on
page 90. Assembly see ZConstruction guidance connection cable, 12-wire– on page
59.
