Instruction Handbook b maXX (BM4-F-)ENC-XX (Encoder module)
Document No.: 5.01042.12 Baumüller Nürnberg GmbH
30
of 102
4.2
4.2 BM4-F-ENC-XX for standard controller
The encoder module BM4-F-ENC-XX can be plugged in the standard controller of the
b
maXX 4000.
The BM4-F-ENC-XX is connected to the controller part with a connector on the back side.
On the front side is a 15 pin Sub-D connector (female).

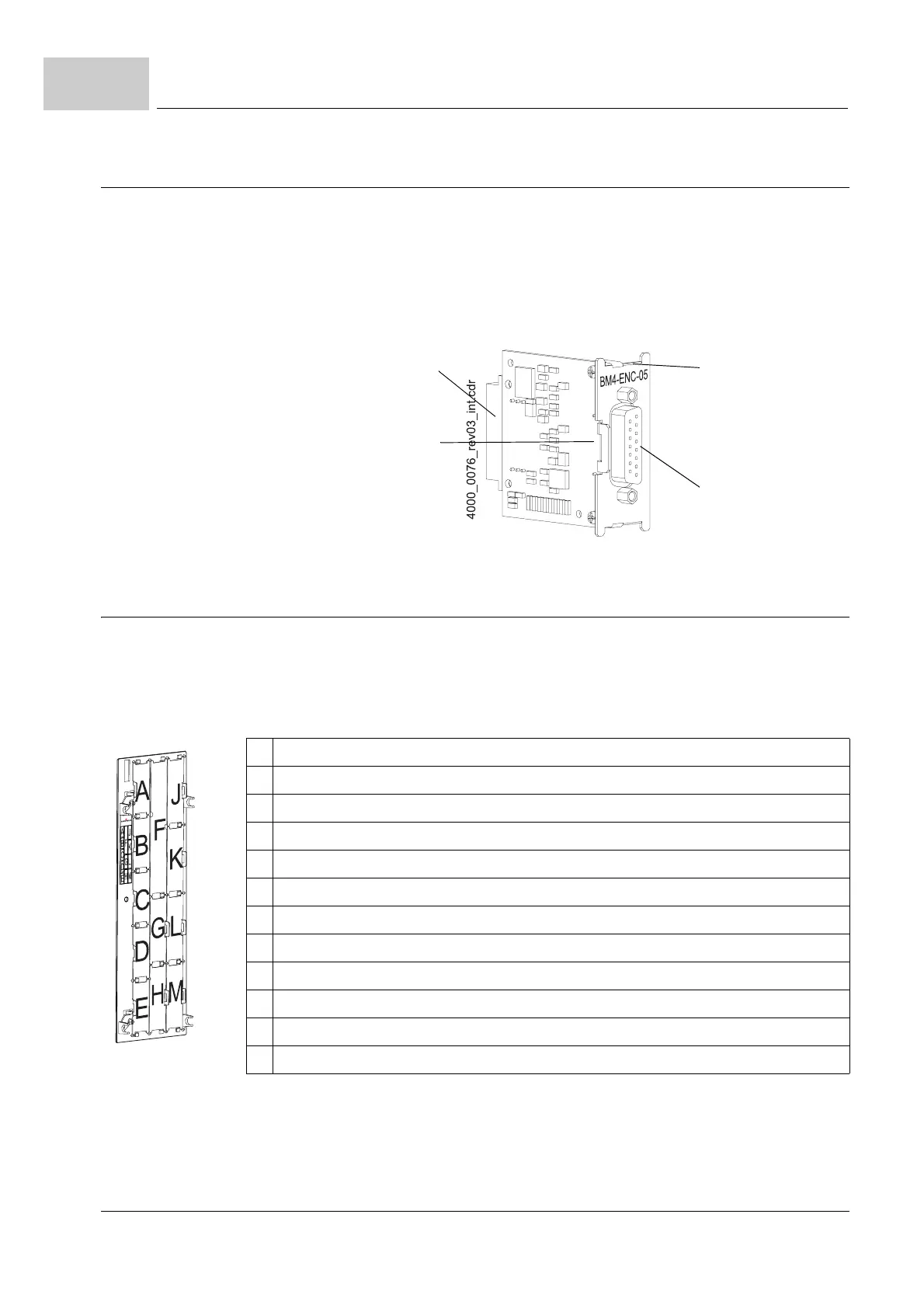

Figure 2: Encoder module for standard controller
4.2.1 Slots BM4-F-ENC-XX for standard controller
Function and option modules can be plugged in the slots of the controller part. Each po-
sition is clearly identified by a character.
At the most 2 encoder modules can be plugged (slot A and B, unless they are not used).
The slots with character A and B are equal. Prefer slot A for the drive control encoder.
Optional plug-in modules (function or option modules) can be upgraded dependent on the
existing controller type.
Connector (back side)
Handle
Module name
e.g.
BM4-F-ENC-05
Sub-D connector
(front side)
A BM4-F-ENC-XX
B BM4-F-ENC-XX
C
D
E
F
G
H
J
K
L
M
