Installation
Instruction Handbook b maXX (BM4-F-)ENC-XX (Encoder module)
Document No.: 5.01042.12
59
of 102
7
7.3.4 Construction guidance connection cables
Construction guidance connection cable, 12-wire
The connection cable can be used for following encoder types:
m (BM4-F-)ENC-01, (BM4-F-)ENC-11, (BM4-F-)ENC-21 resolver
m (BM4-F-)ENC-03 5V square wave incremental encoder
m (BM4-F-)ENC-04 5V sine cosine incremental encoder with zero-point sensing
m (BM4-F-)ENC-02, (BM4-F-)ENC-12 sine cosine encoder with Hiperface
®
The connection cable can be ordered from Baumüller Nürnberg GmbH (see ZEncoder
cable 12-wireon page 90).
Construction guidance:
1 Use the following materials:
m Cable: LiYCY 5 x (2 x 0.14) + 2 x 0.5 mm², Cu braiding with at least 85% opt. overlap
m Sub-D connector. 15-pin, male
m Circular connector: 12-pin, female (e.g. Interconnectron)
2 Connect the cable shield with the cabinet of the circular connector and with the shield
of the Sub-D connector

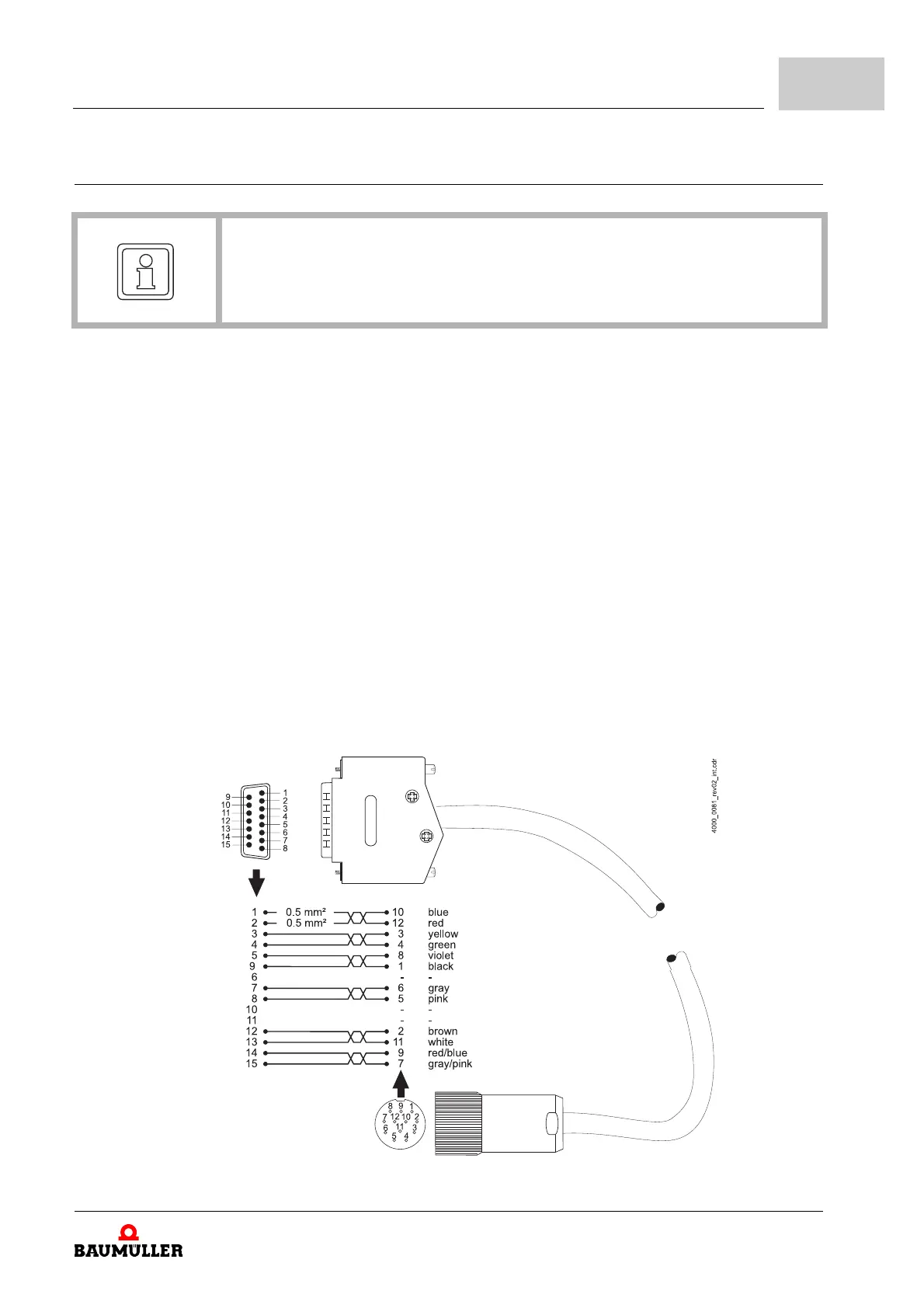

Figure 9: Connection cable, 12-wire
NOTE
The connection cables must be made according to the following figures!
In case there is another assignment of the pins, the cable will not operate and defects
as well as at the encoder module and also at the encoder can be caused!
