Baumuller b maXX BM4 Series Instruction

Commissioning/Operation
Instruction Handbook b maXX (BM4-F-)ENC-XX (Encoder module)
Document No.: 5.01042.12
69
of 102
8
8.2 Procedure of the test-commissioning
The test-commissioning is divided into the following sections:
1 recognition and
2 function test of the encoder module
8.2.1 Recognition of the encoder module
During of the ramp-up of the device the controller automatically reads out the identifica-
tion of the encoder module/the encoder modules.
After that check with ProDrive if the (BM4-F-)ENC-XX has been correctly recognized.
1 Switch on b maXX BM4000
2 Wait until the system has started.
Delete upcoming errors/error messages at the device b maXX 4000.
These errors can be due to faulty mounting (e. g. defect cables) or faulty installation (e. g.
missing power supply). Not until the errors have been removed, you may continue com
-
missioning.
3 Open with ProDrive the window „Diagnosis“.
.

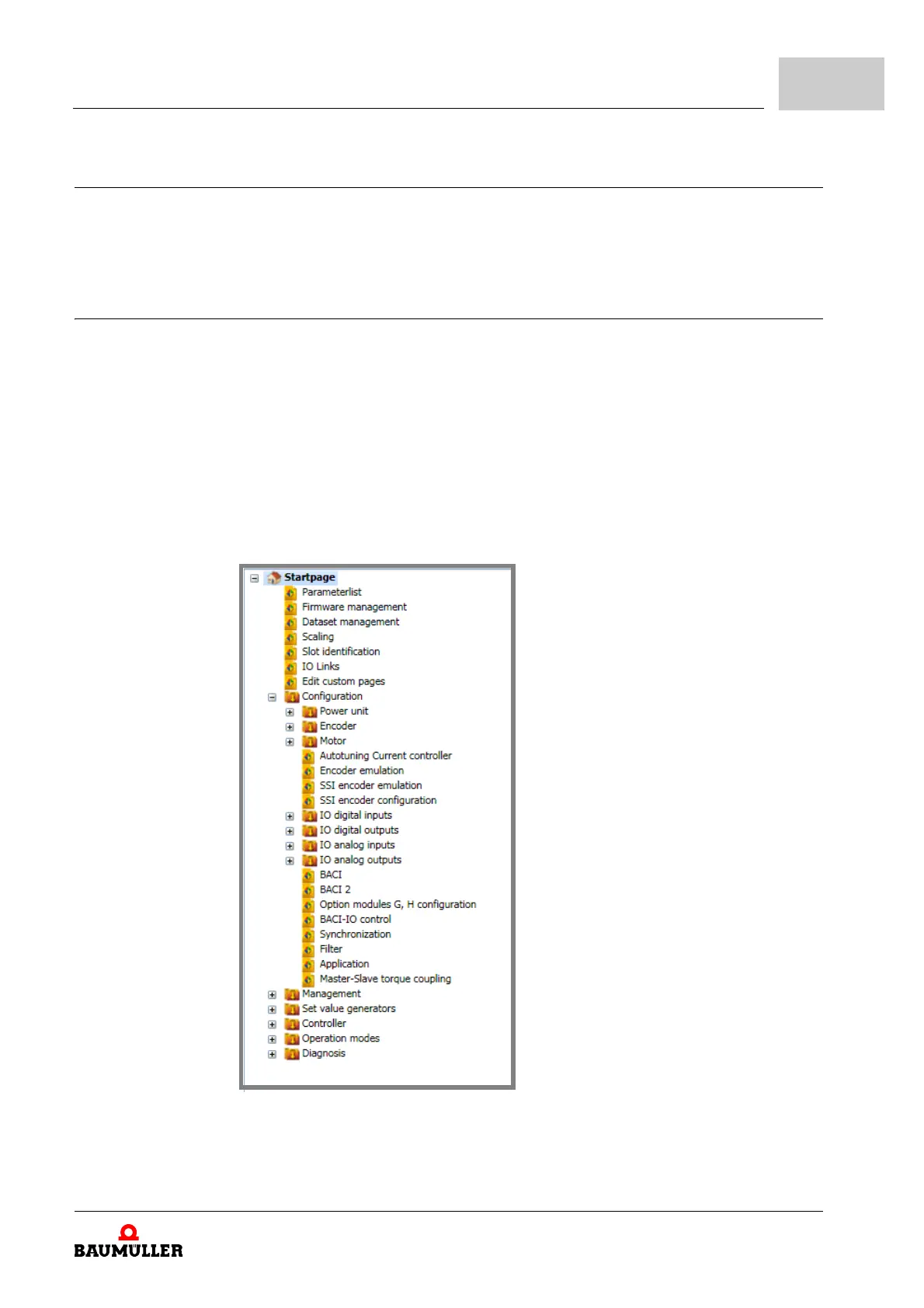

Figure 15: ProDrive navigation
