Baumuller b maXX BM4 Series Instruction

Installation
Instruction Handbook b maXX (BM4-F-)ENC-XX (Encoder module)
Document No.: 5.01042.12
63
of 102
7
Construction guidance connection cable for (BM4-F-)ENC-27
m Encoder with SSI interface and 24V encoder supply
Construction guidance:
Construction guidance:
1 Use the following materials:
m Cable 6 wires: (recommended: 2 x (2 x 0.14) + 2 x 0.5 mm², twisted pairs and
shielded, tinned Cu transfer, Cu braiding with at least 85 % opt. overlap. Cu braiding
with at least 85
% opt. overlap
m Sub-D connector. 9-pin, male
m Suitable encoder plug, circular connector: 7-pin female
2 Connect the cable shield with the cabinet of the circular connector and with the shield
of the Sub-D connector

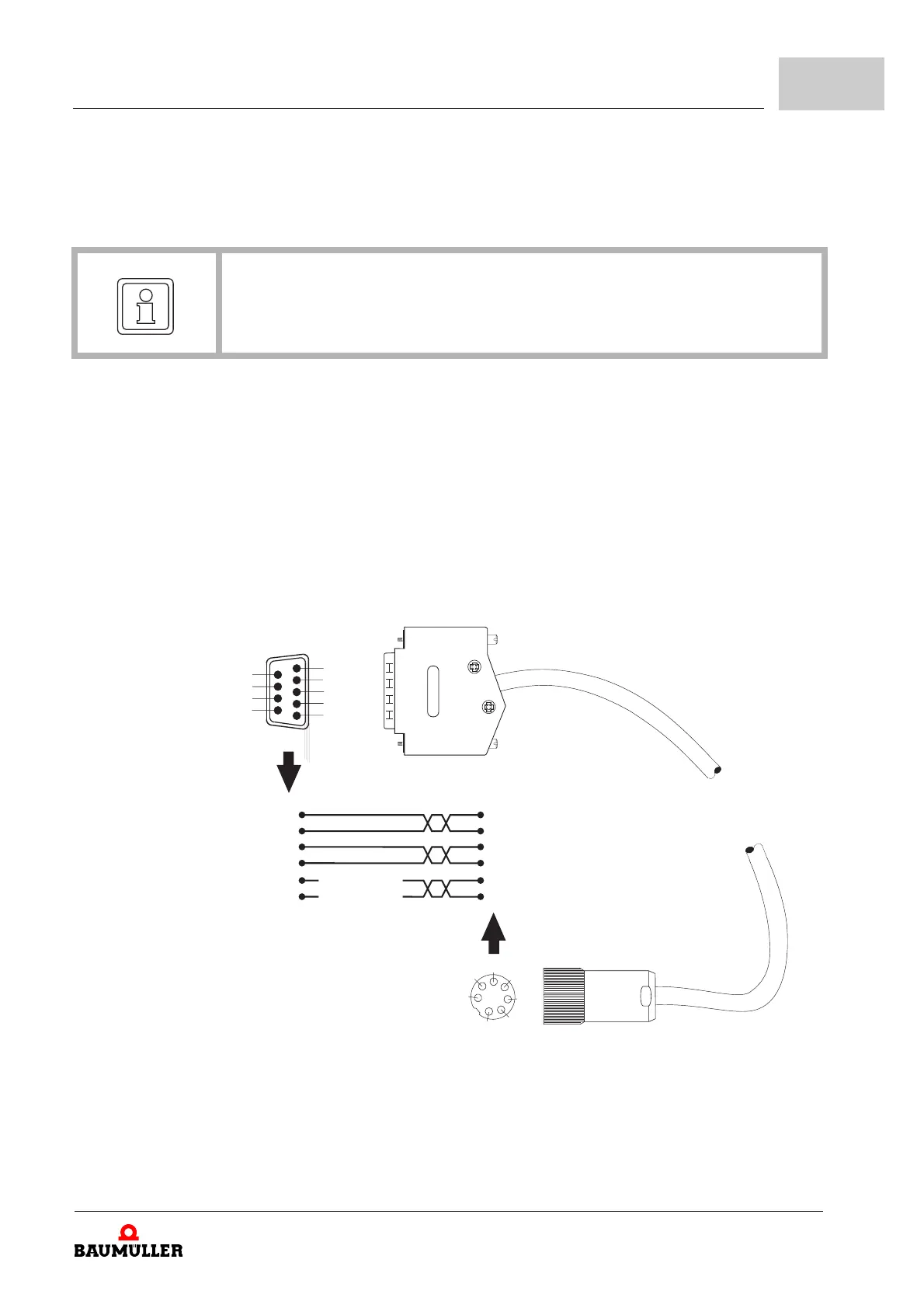

Figure 13: Connection cable (BM4-F-)ENC-27
NOTE
The connection cable is not offered by Baumüller Nürnberg GmbH and must be made
by the user.
1
6
7
8
9
2
3
4
5
1
2
3
4
5
6
1
2
8
9
6
7
0,5 mm²
0,5 mm²
1
4
2
5
3
7
6
Encoder connector, e. g. Temposonics
View of connector side
