HB-37420-810-01-25F-EN SMX100 Installation manual.docx Page 250 of 260
Version: 25F
Safety function:

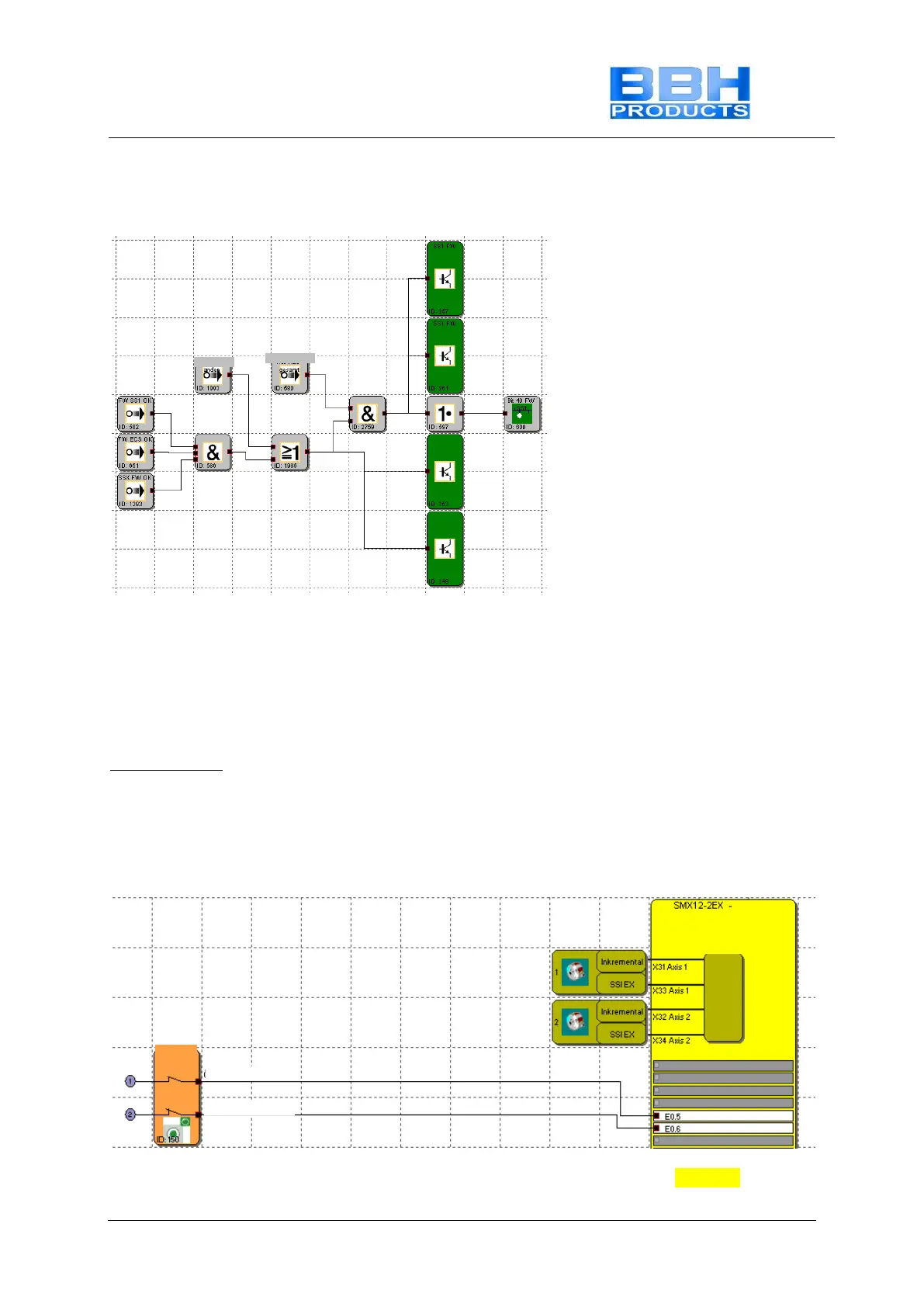

1.7.3 Carriage shut down
Shut down of travel system and deactivation of brakes
Shut down on carriage
The carriage is switched off via two outputs (IQQ.5 ID 257 and 1.6 ID 261).
The brakes are released via two outputs (IQQ1.3 ID 253 and 1.4 ID 249).
The PLC receives a message concerning bit 40 (ID 600).
In case of an emergency stop the shut-down takes place immediately.
Lift
Safety function
Emergency stop switch inputs and shut-down outputs.
1.1 Emergency stop head control
Dual-channel emergency stop with pulse monitoring
If an emergency stop is triggered at the imposed control, this emergency stop can be
bridgedif the approval 'Bridge safety' has been issued.
Emergency stop button head control
Emergency stop contacts from emergency stop relay with pulsing from the SMX100
To Next Page
