BBH SMX Series User Manual

Installation manual
HB-37420-810-01-25F-EN SMX100 Installation manual.docx Page 32 of 260
Version: 25F
3.2.2 Central expansion modules
3.2.2.1 Expansion module SMX121(/2)
Type designation

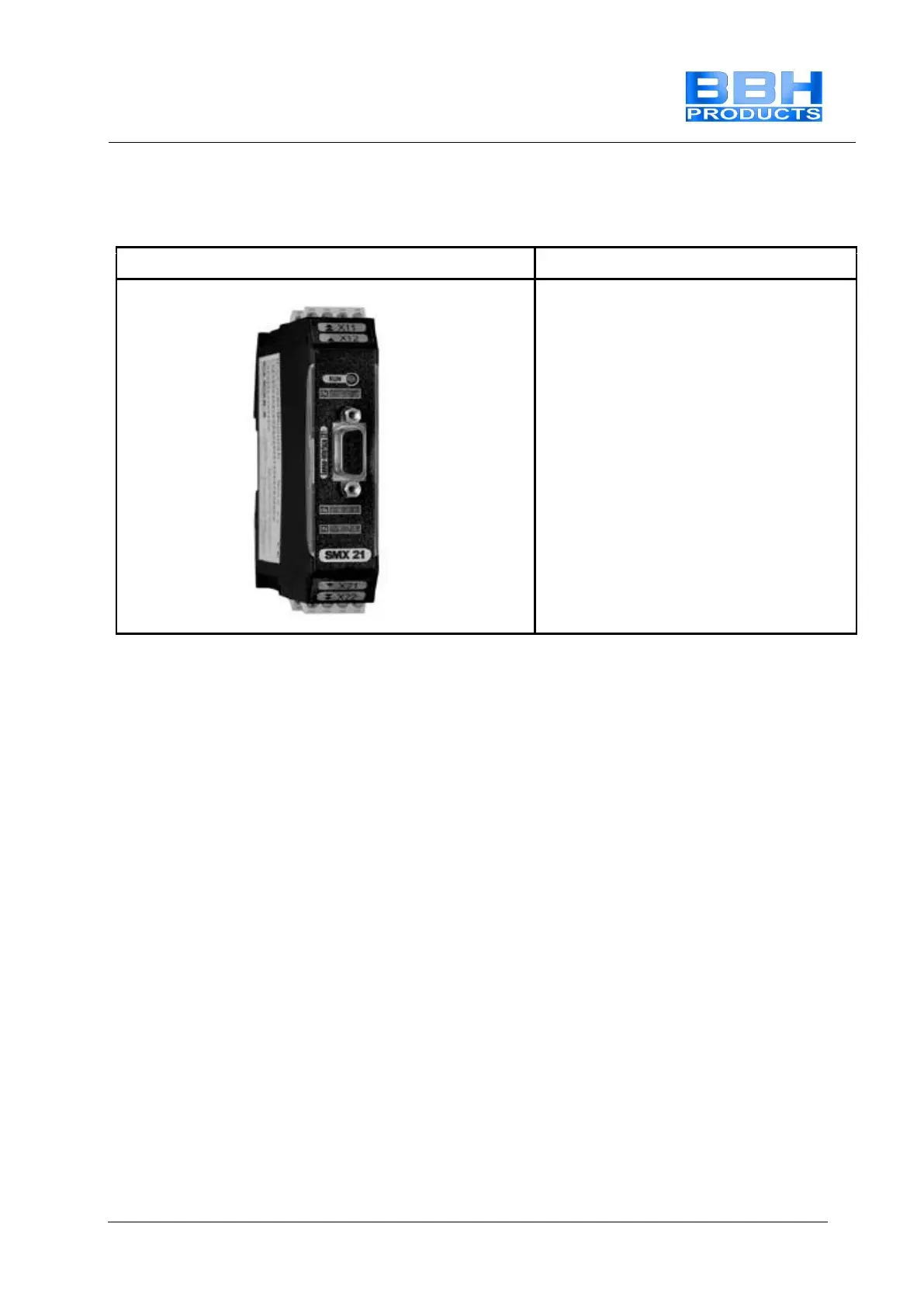

Device design
Design of module with the following
periphery:
1 Axis
3 Encoder interfaces (*)
12 Digital inputs
1 status LED
12 status LEDs for inputs
Characteristics of the module:
• Movement monitoring of one or two axes up to Pl e EN ISO 13849-1 or SIL 3 acc. to
IEC 61508
• Speed monitoring
• RPM-monitoring
• Standstill monitoring
• Sense of rotation monitoring
• Safe incremental dimension
• Emergency Stop monitoring
• Position monitoring
• Position range monitoring
• Trend range monitoring
• Target position monitoring
• Parameter management for expansion modules in base device
• Comprehensive diagnostics functions integrated
• Assembly on top hat rail
