86 BD FACSCanto Flow Cytometer Reference Manual

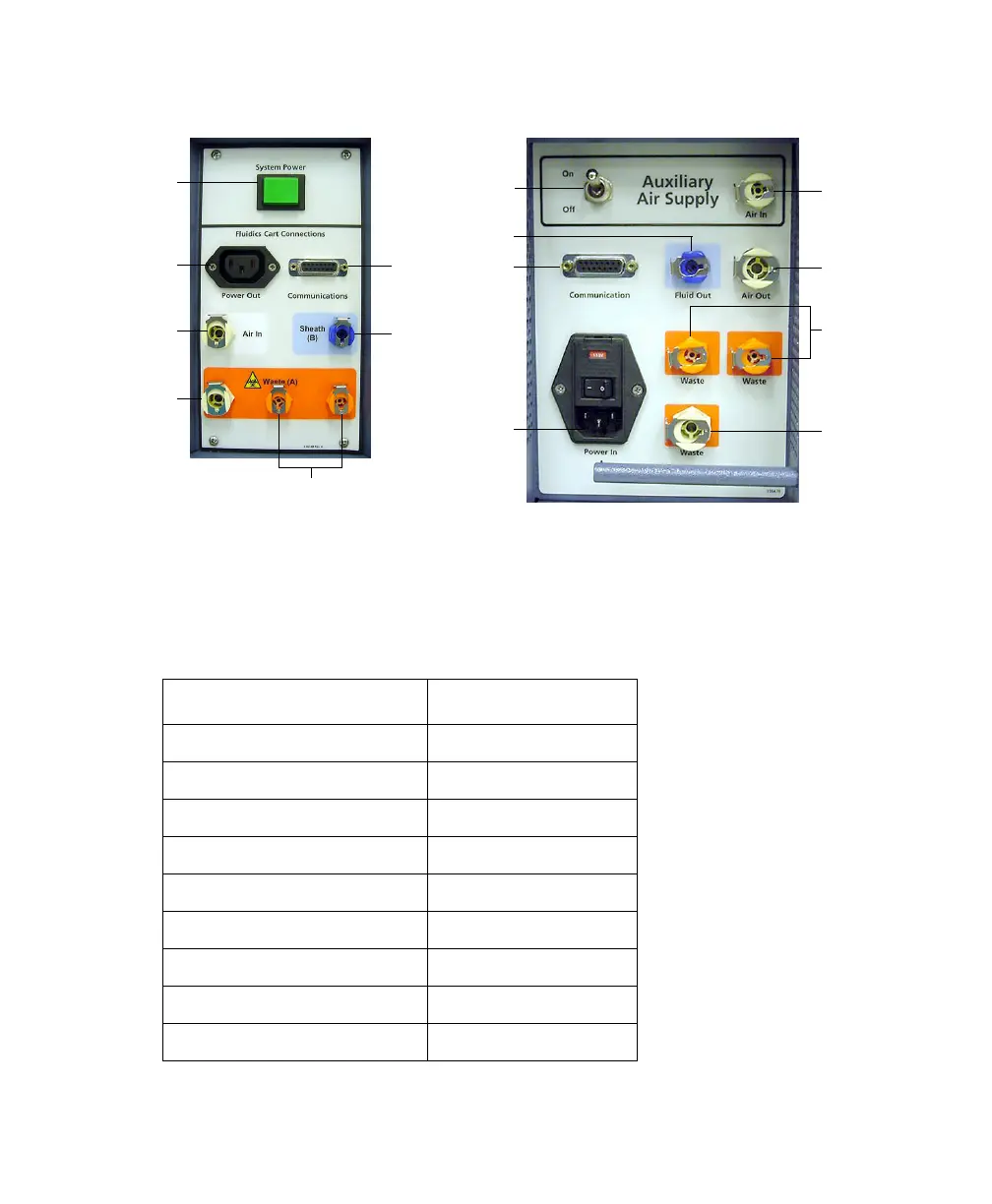

Figure 4-7 Cytometer and fluidics cart ports
Cytometer ports and their corresponding fluidics cart ports are listed in
Table 4-1. For example, ensure the tubing for f. Sheath (B) connects to the port
labeled i. Fluid Out. Table 4-2 on page 87 lists port functions.
Table 4-1 Correspondence of cytometer ports to fluidics cart ports
Port or Button on Cytometer Port on Fluidics Cart
a. System Power —
b. Power Out k. Power In
c. Air In m. Air Out
d. Waste (A) o. Waste
e. Communications j. Communication
f. Sheath (B) i. Fluid Out
g. Waste (A) n. Waste
— h. On/Off
—l. Air In
f
g
d
c
b
a
e
i
m
j
k
o
n
h
l
cytometer ports fluidics cart ports
