Becker AR6201 - Drilling Jig for Back-Panel Mounting; Connectors and Pin Assignment; Mounting Dimensions VHF Transceiver; VHF Transceiver Side View

AR6201-(X0X)
Page 2-2 DV 14300.03/.04 Issue 5 5/2013

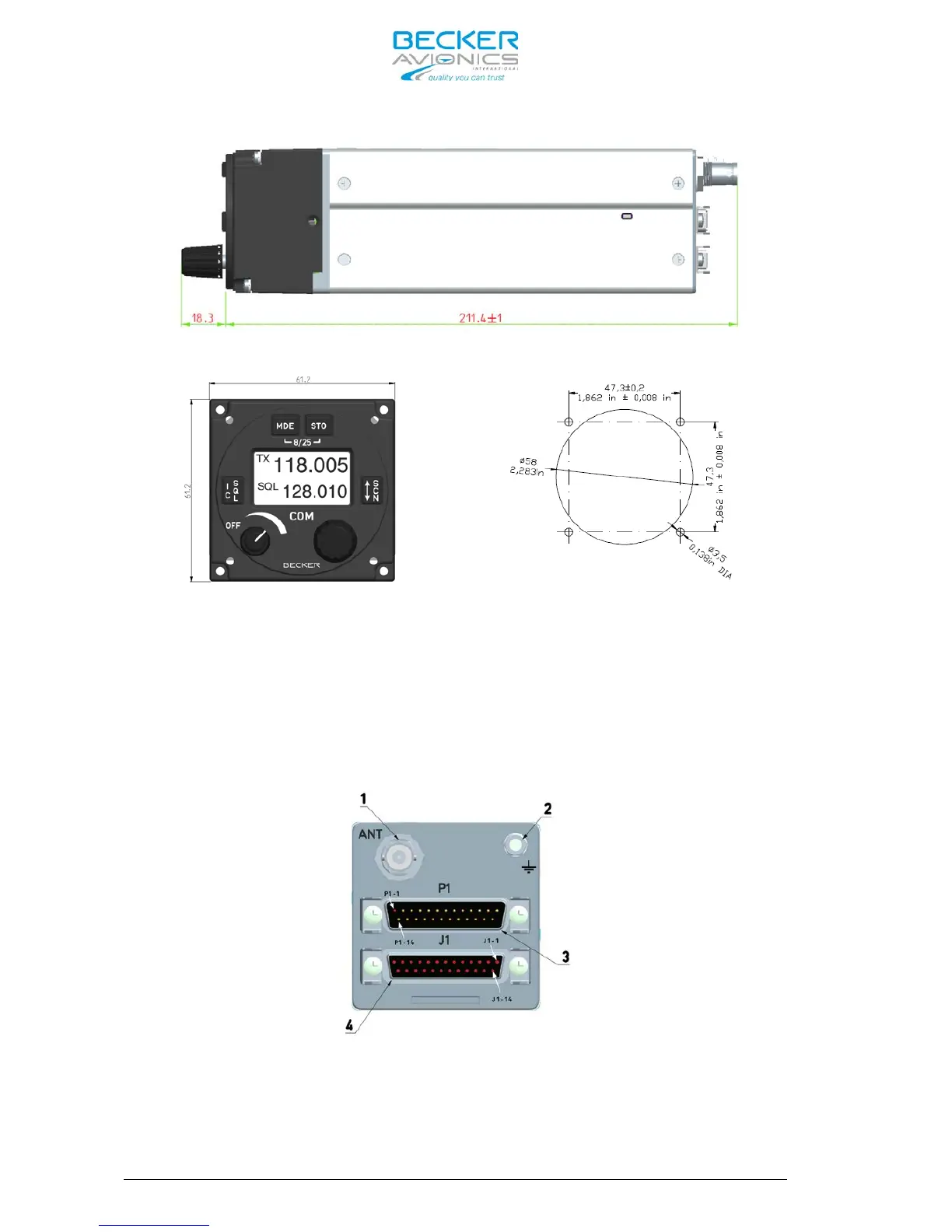

Figure 2-1 VHF transceiver side view
Figure 2-2 Mounting dimensions VHF
transceiver
Figure 2-3 Drilling jig for back-panel
mounting
2.4 Electrical Interface
2.4.1 Connectors and Pin Assignment
Figure 2-4 Connectors on rear plate
