AR6201-(X0X)
Page 3-2 DV 14300.03/.04 Issue 5 5/2013
3.2 Controls and Indicators

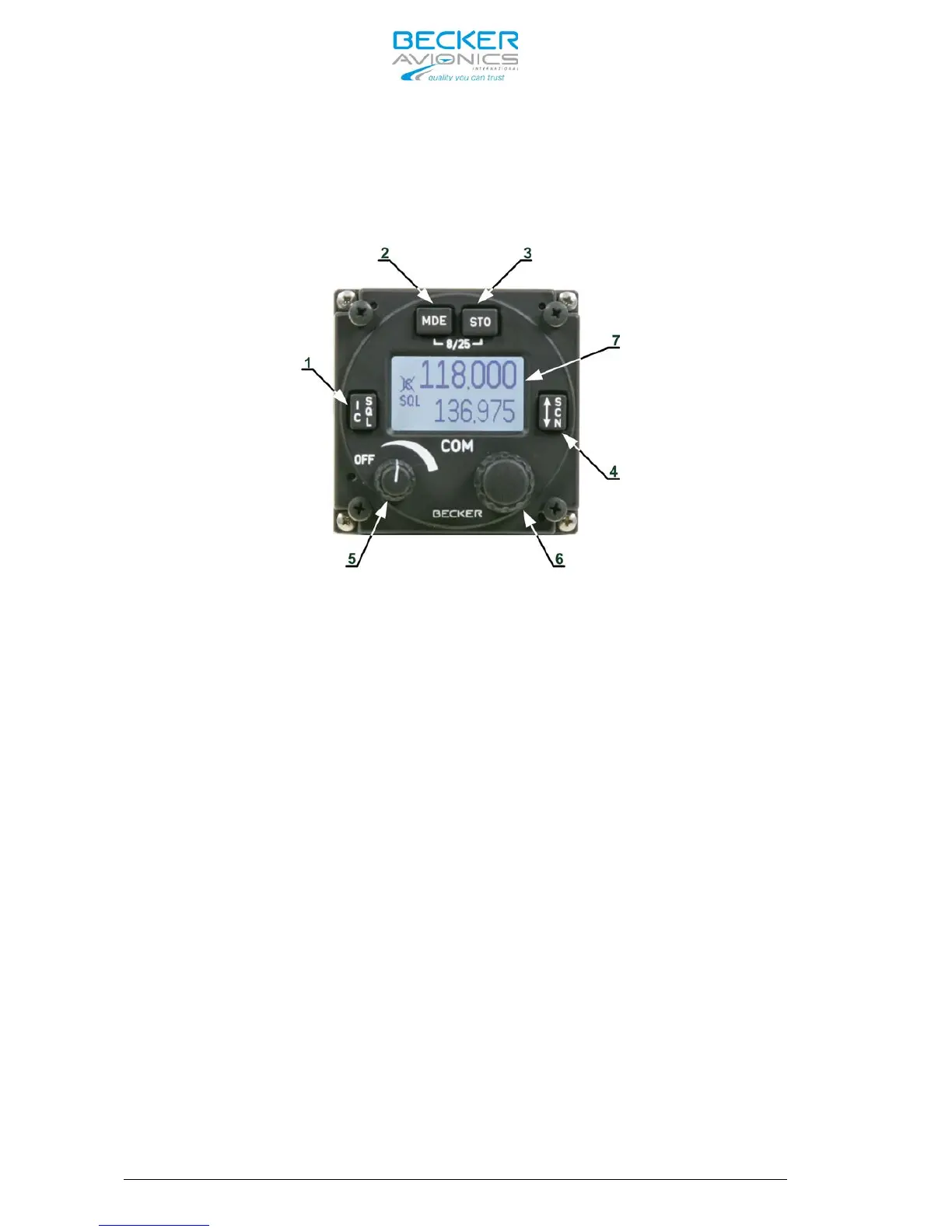

Figure 3-1 Controls and Indicators
Note: The following graphics of the AR6201-(X0X) display content
are shown in the 8.33 kHz channel spacing for all possible
operation modes.
Dedicated pictures are not explicit provided for the 25 kHz
modes because the basic display content is very similar and
they differ only in the number of digits for the frequency
indication. (Refer to chapter 3.4).
