7.4 Pump elements
Two different types of pump elements can be installed in the PICO pump. This is for the use in different central lubrication
systemsor theircombinations.
7.4.1 Pump elements for progressive central lubrication systems
There is a pump element with adjustable output rate and a pump element with four fix, set output rates. These pump
elementscan bedelivered with orwithout pressure limitingvalves (see17. spare partdrawing and 18.spare partlist).
Pump element with adjustable output rate PE-120 FV:
Theoutput rateof the pumpelements PE-120 FVcan bereducedfrom 0,12cm to0,04 cm .
33
The pump element PE-120 FV can be delivered with a pipe connection Ø6 (Fig. 4) or Ø8 (Fig. 5) (see 17. spare part
drawingand 18.spare part list).

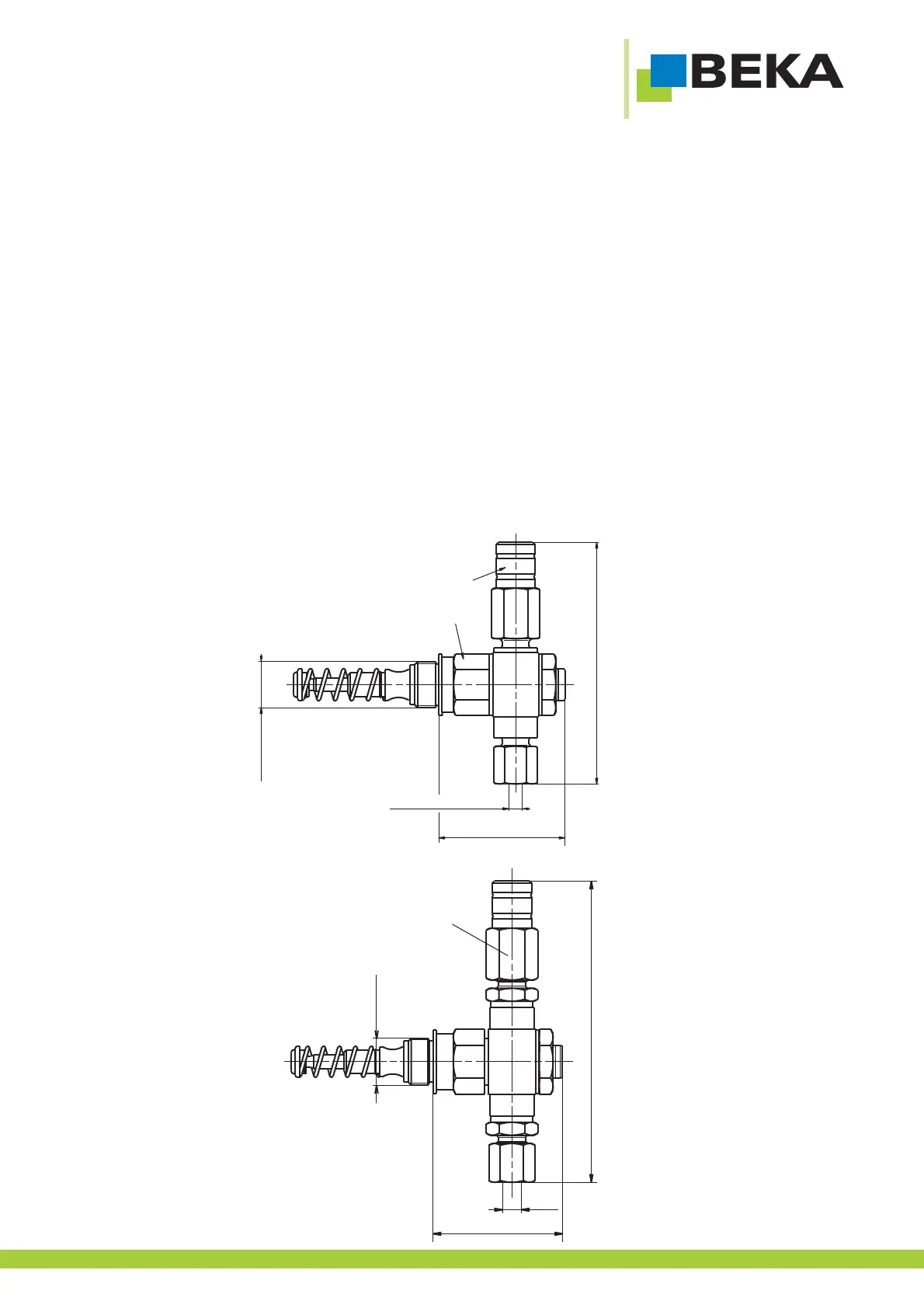

Fig.4:
Fig.5:
pipe connection Ø 6
Pressure relief valve set to
280 bar fix
AF 24
M 20 x 1,5
ca. 55
~ 105
M20x1,5
Ø8
ca. 55
Pressure relief valve set to 280 bar by default
ca. 130
